The Yamaha RX-V565 is a 7.1-channel digital home theater receiver. It delivers 90 watts per channel (630 watts total) and supports high-definition audio formats like Dolby TrueHD and DTS-HD Master Audio.
Key Specifications
- Power Output: 90W per channel into 8 ohms
- Surround Sound: 7.1 channels with HD audio decoding (Dolby TrueHD, DTS-HD)
- Video Connectivity: 4 HDMI inputs, 1 HDMI output with 1080p pass-through and analog-to-HDMI upconversion
- Calibration: Features Yamaha’s YPAO automatic room optimization via an included setup microphone
- Dimensions & Weight: 435 × 151 × 364 mm; 8.5 kg
Specifications
Tuning range: FM, MW
Power output: 90 watts per channel into 8Ω (stereo)
Surround output: 90W (front), 90W (center), 90W (rear)
Frequency response: 10Hz to 100kHz
Total harmonic distortion: 0.9%
Input sensitivity: 200mV (line)
Signal to noise ratio: 100dB (line)
Output: 200mV (line), 1V (Pre out)
Speaker load impedance: 6Ω (minimum)
Digital inputs: coaxial, optical

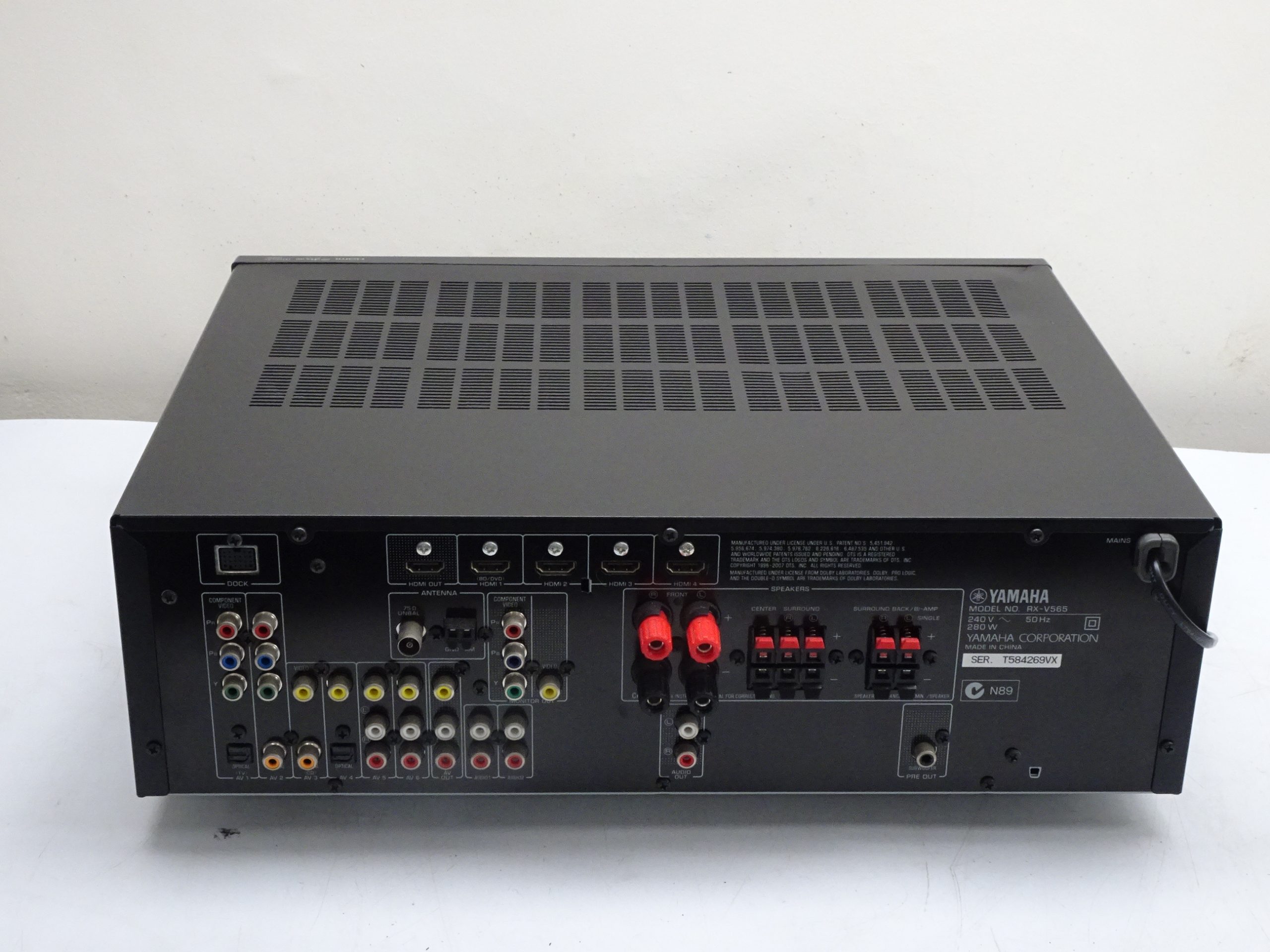

Video Connections: HDMI, component, composite
Dimensions: 435 x 151 x 364mm
Weight: 8.5kg
Finish: black, gold, titanium

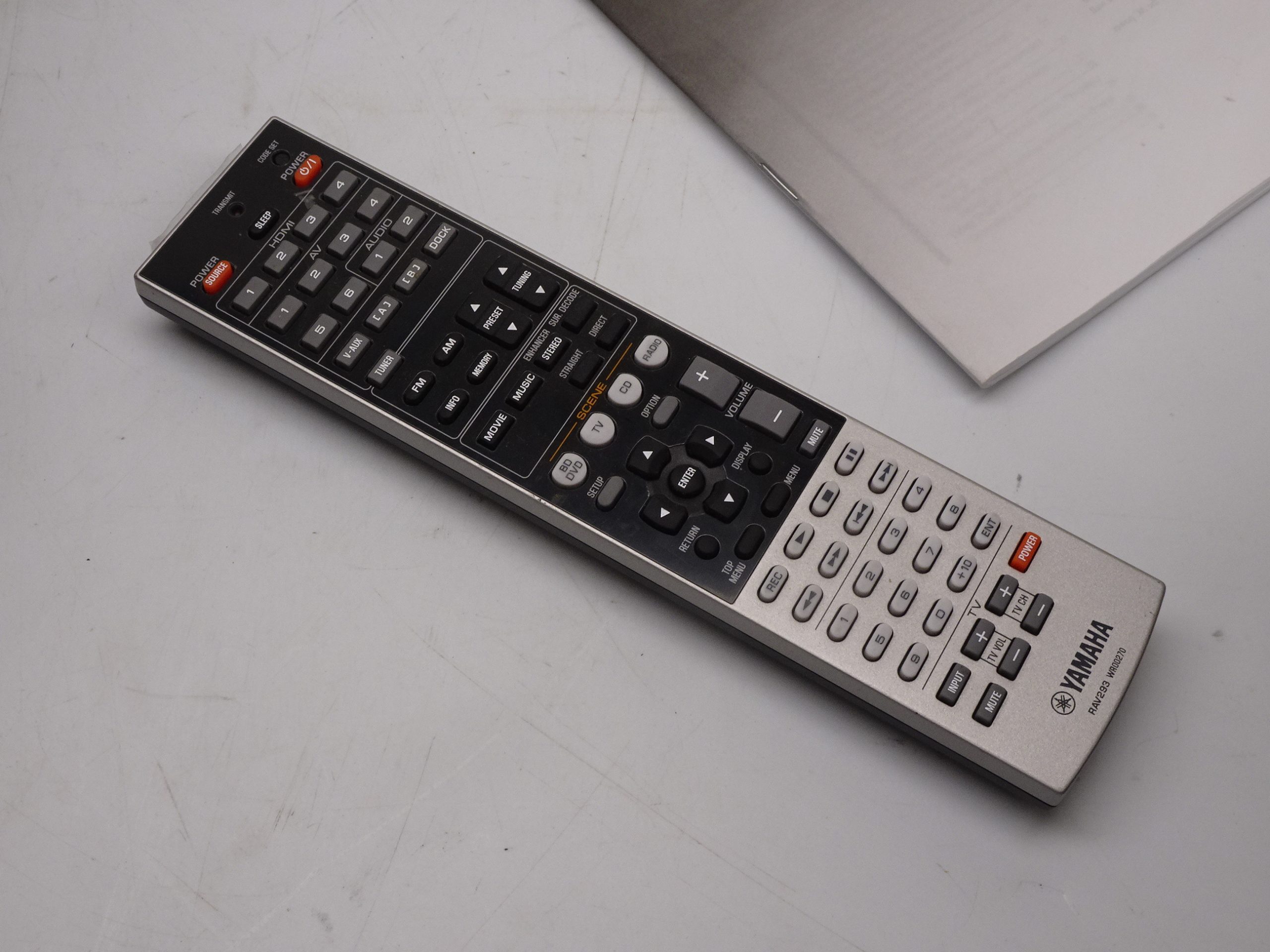

Accessories: remote control
Year: 2009
