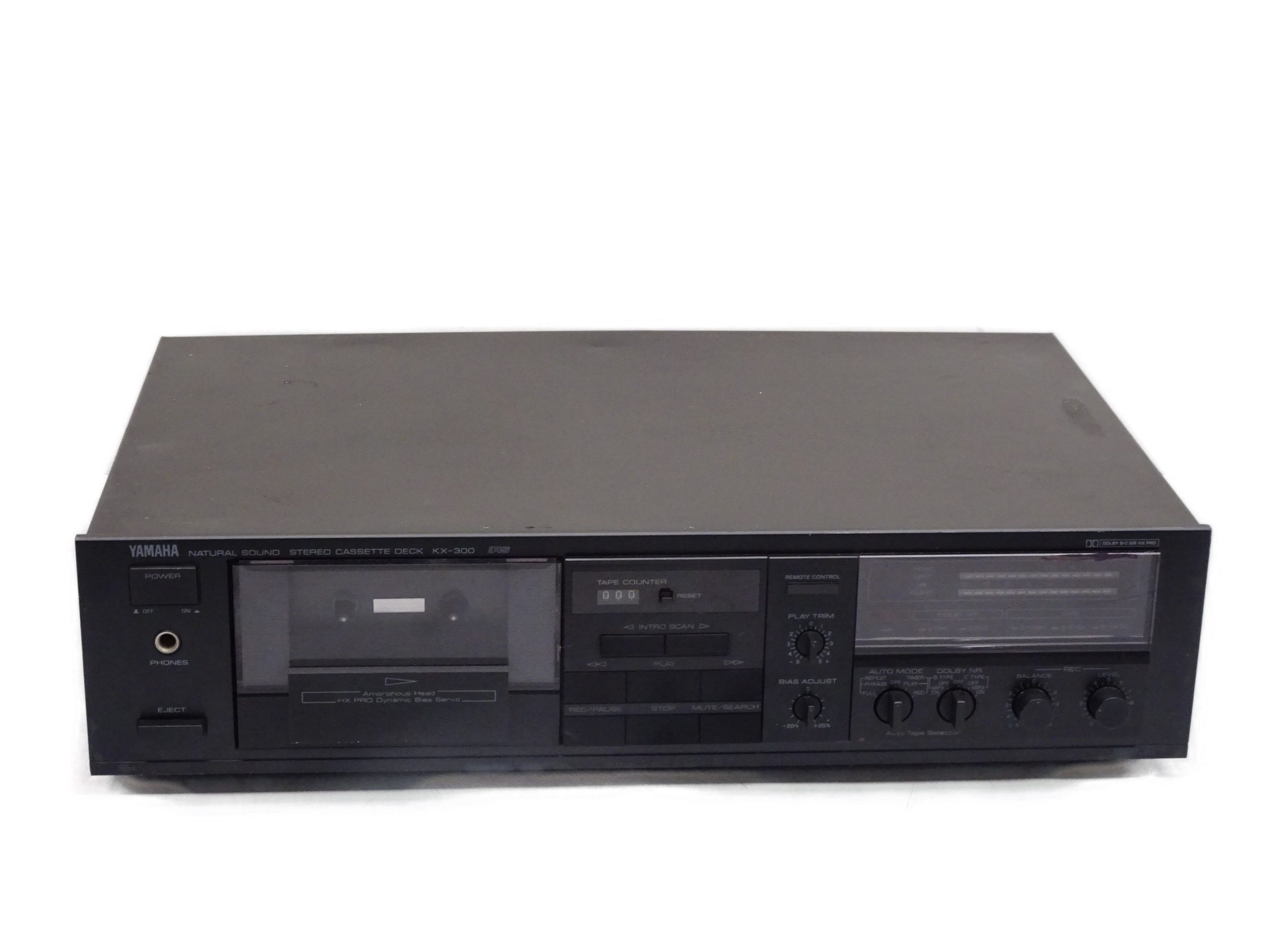

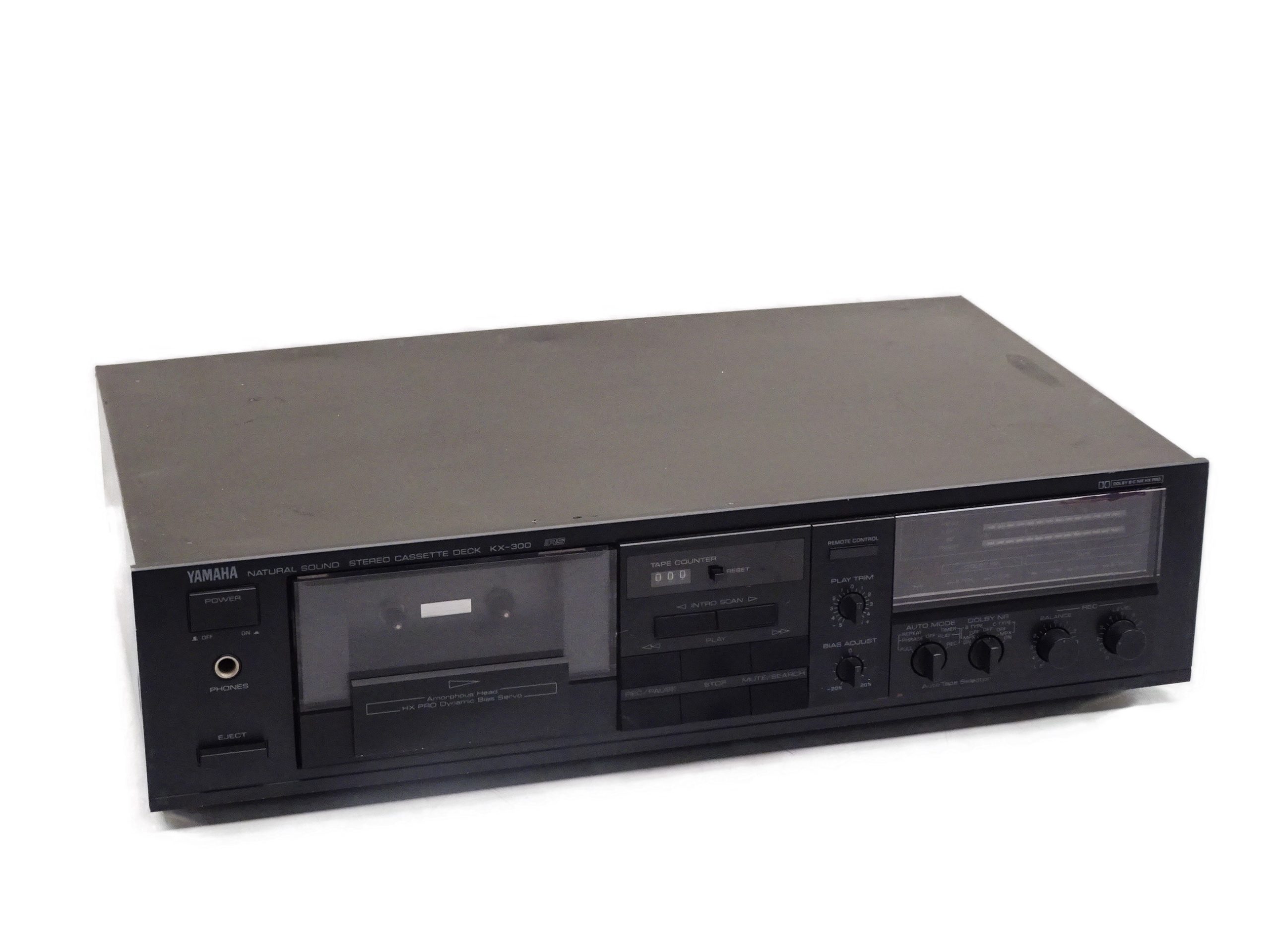

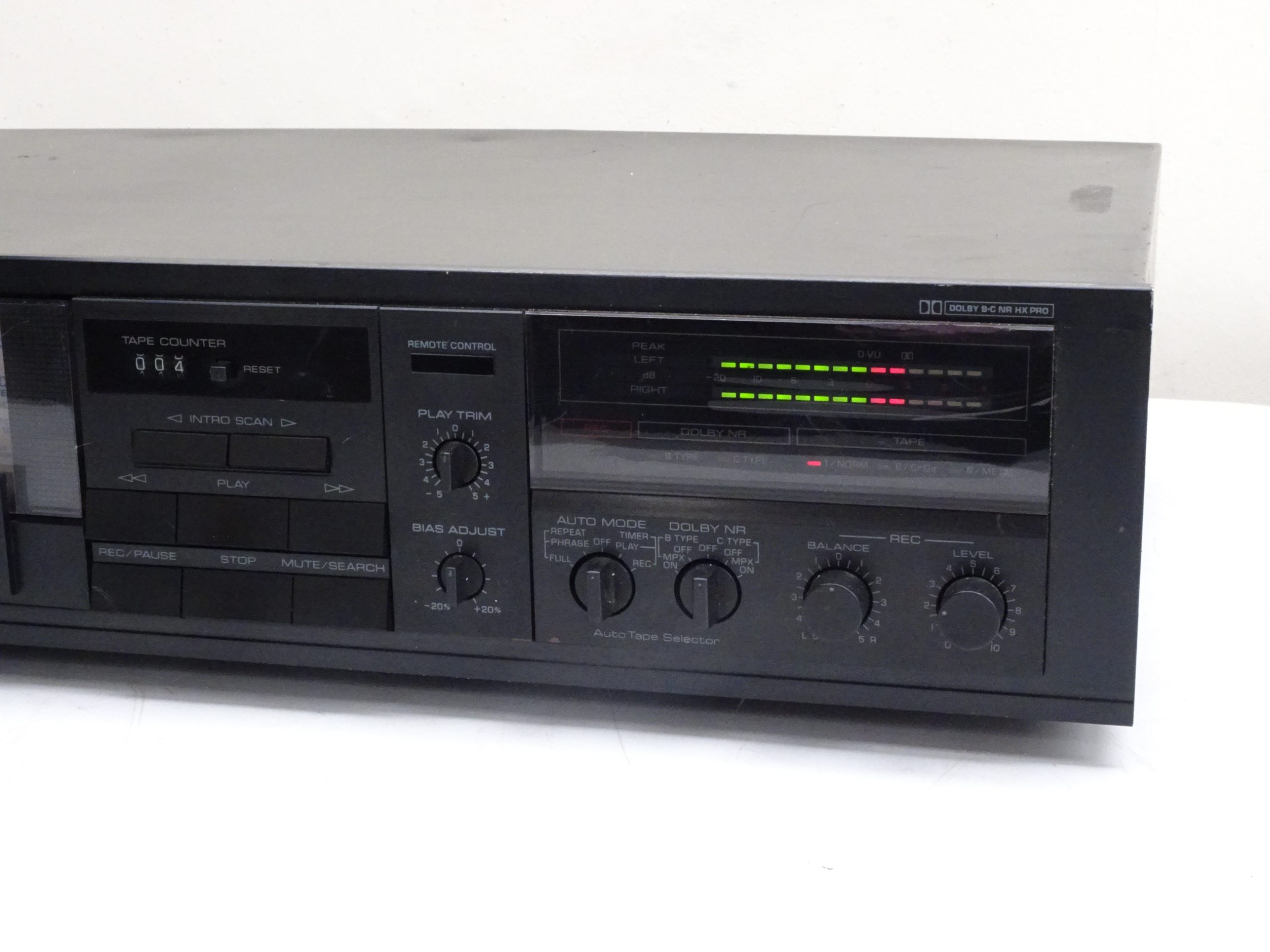

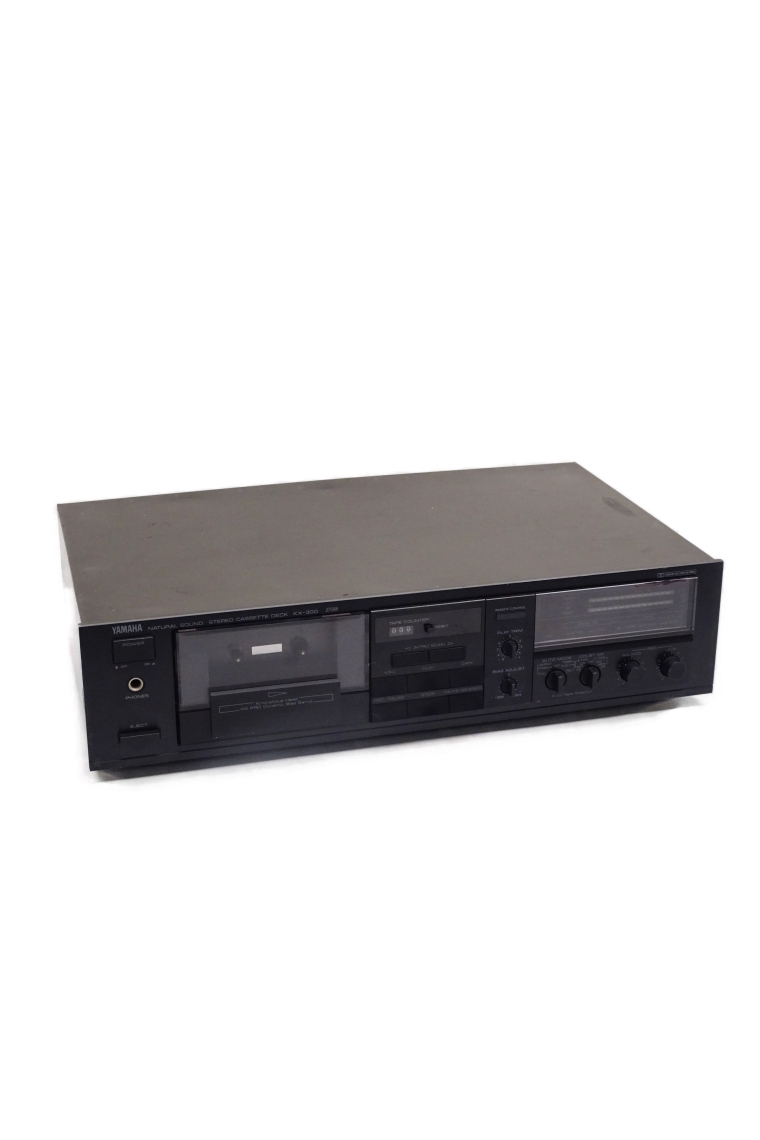

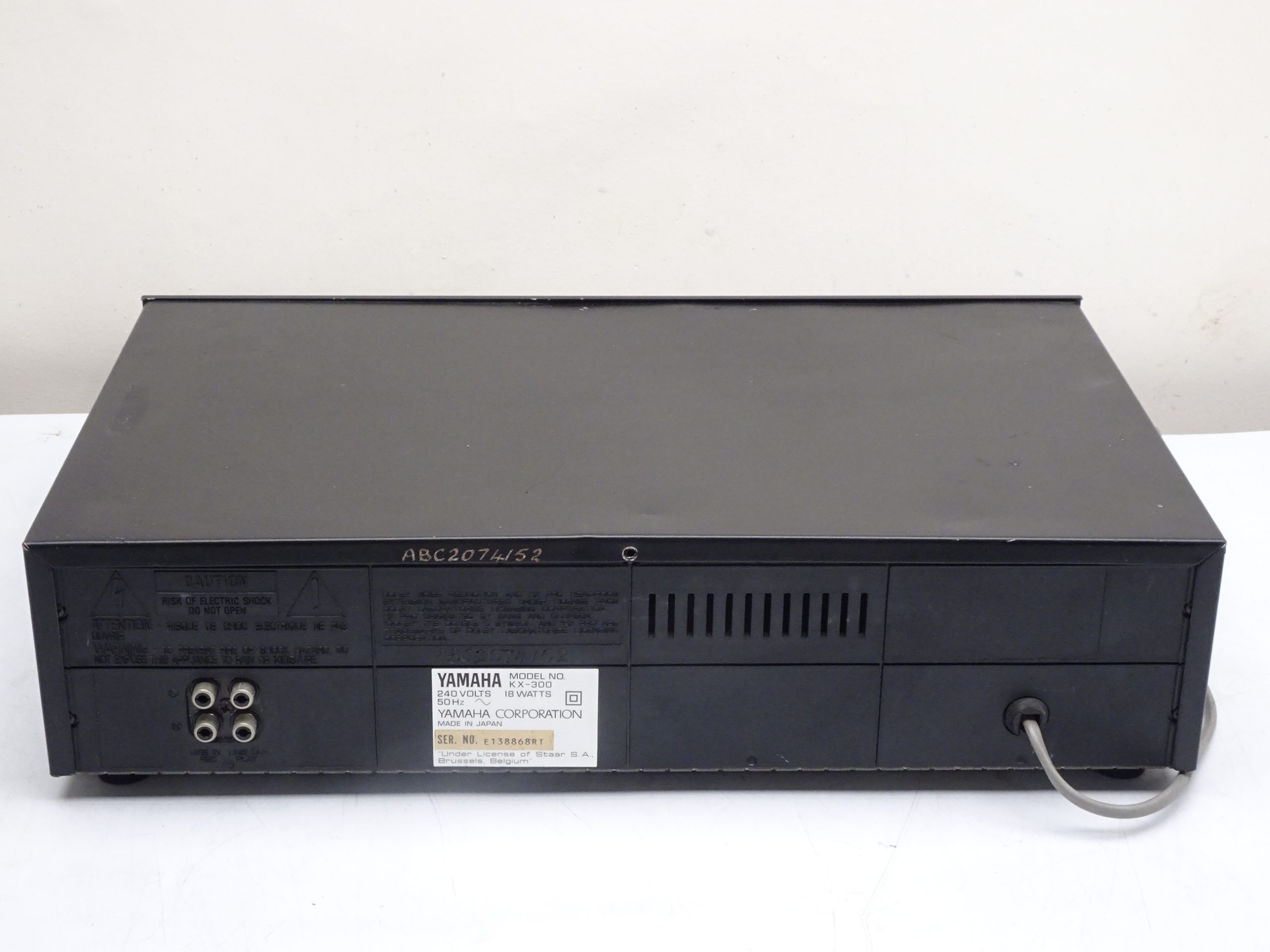

The Yamama KX-300 is a high end cassette deck with some exceptionally helpful features. If your playing back some old dull sounding tapes, the “PlayTrim” function can be used to make them sound brighter again. If you are planning on recording your own tapes, this yamaha has Bias fine adjustment to fine tune to the tape that you are using. Besides that it also got Dolby B / C noise reduction, title skip and HX Pro on board.
To get this KX-300 running perfectly again the service below has been carried out:
- Replacement of Capstan Belt
- Replacement of FFWD/RWD Belt
- Cleaning of Heads
- Cleaning of Capstan with chemical
- Demganetisation of playback head and capstan
- Speed calibration
- Playback level calibration
- Full function test
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Headroom Extension: HX Pro
Frequency Response: 30Hz to 20kHz (Metal tape)
Signal to Noise Ratio: 76dB (dolby C)
Wow and Flutter: 0.05%
Total Harmonic Distortion: 1.0%
Input: 50mV (line)
Output: 0.36V (line)
Dimensions: 435 x 112 x 273mm
Weight: 4.2kg
Accessories: RS-K3 remote control
Year: 1988
