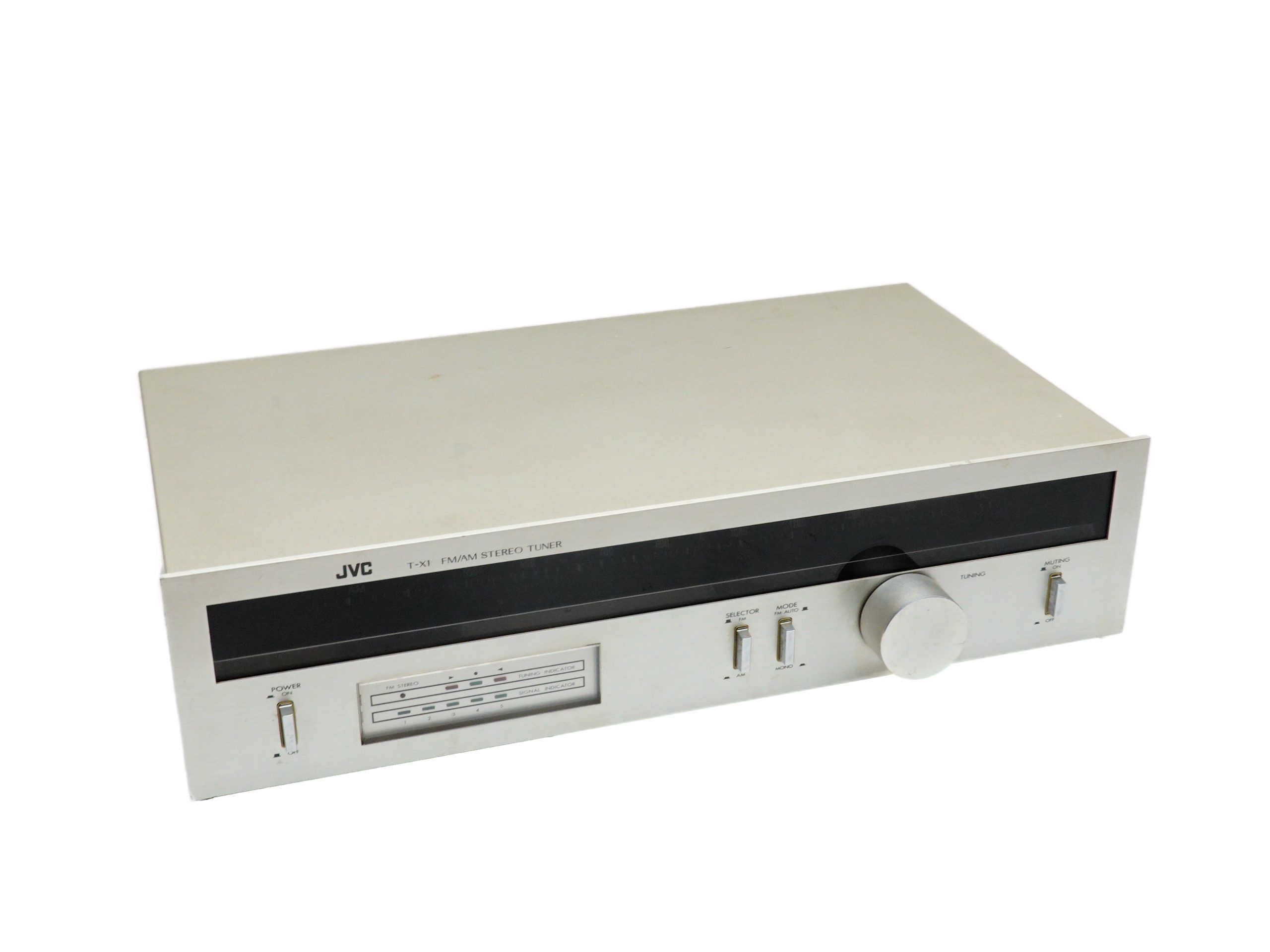

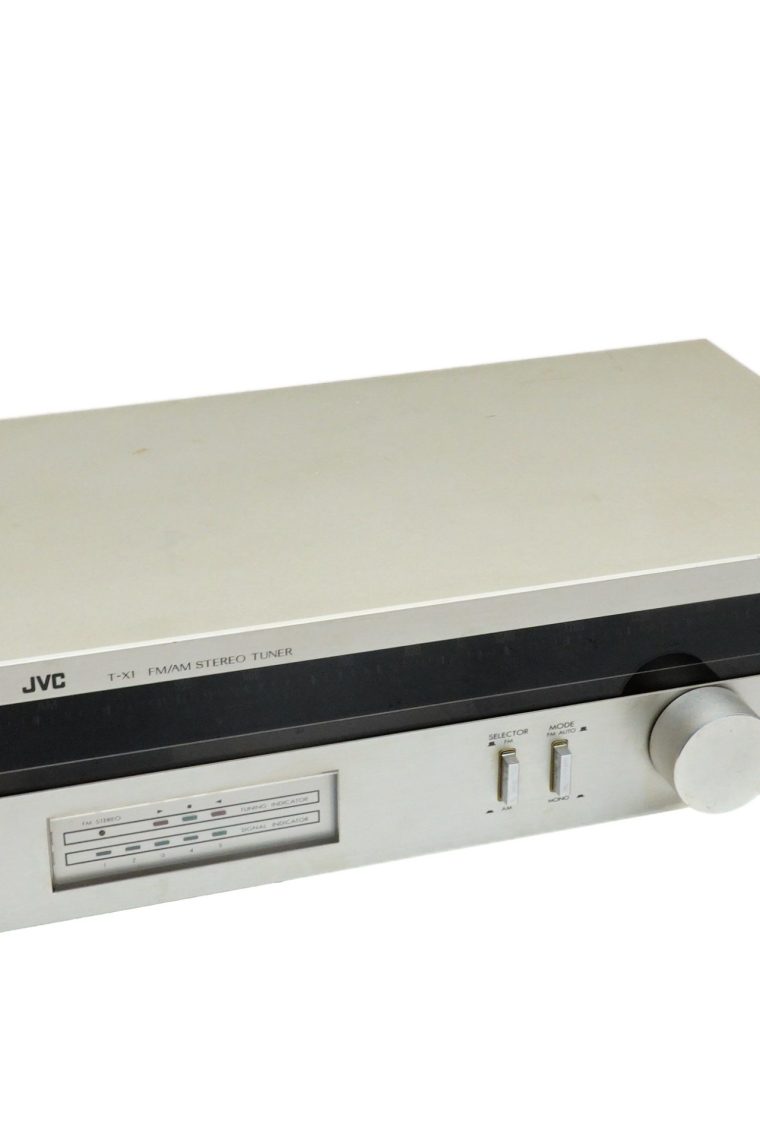

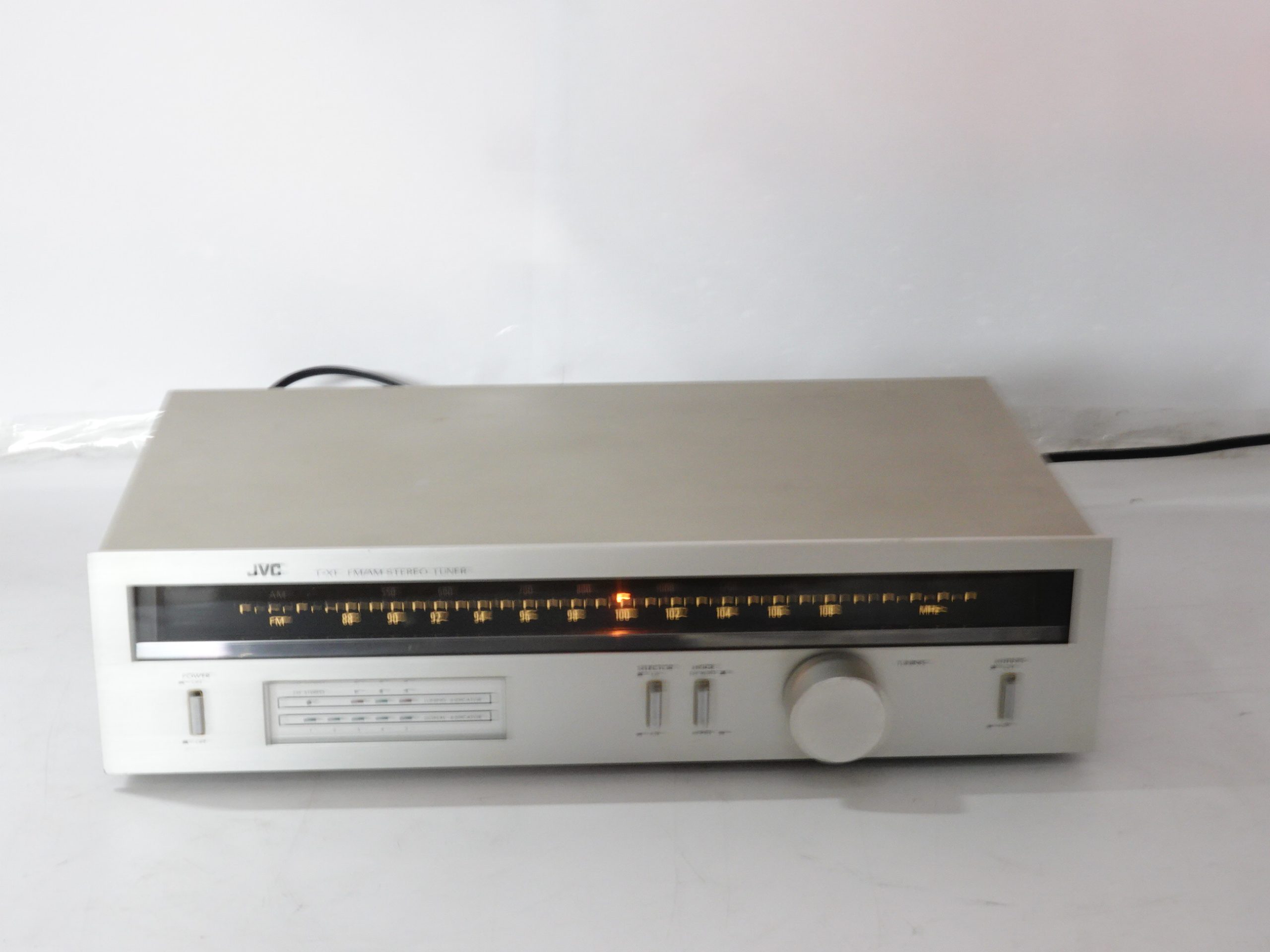

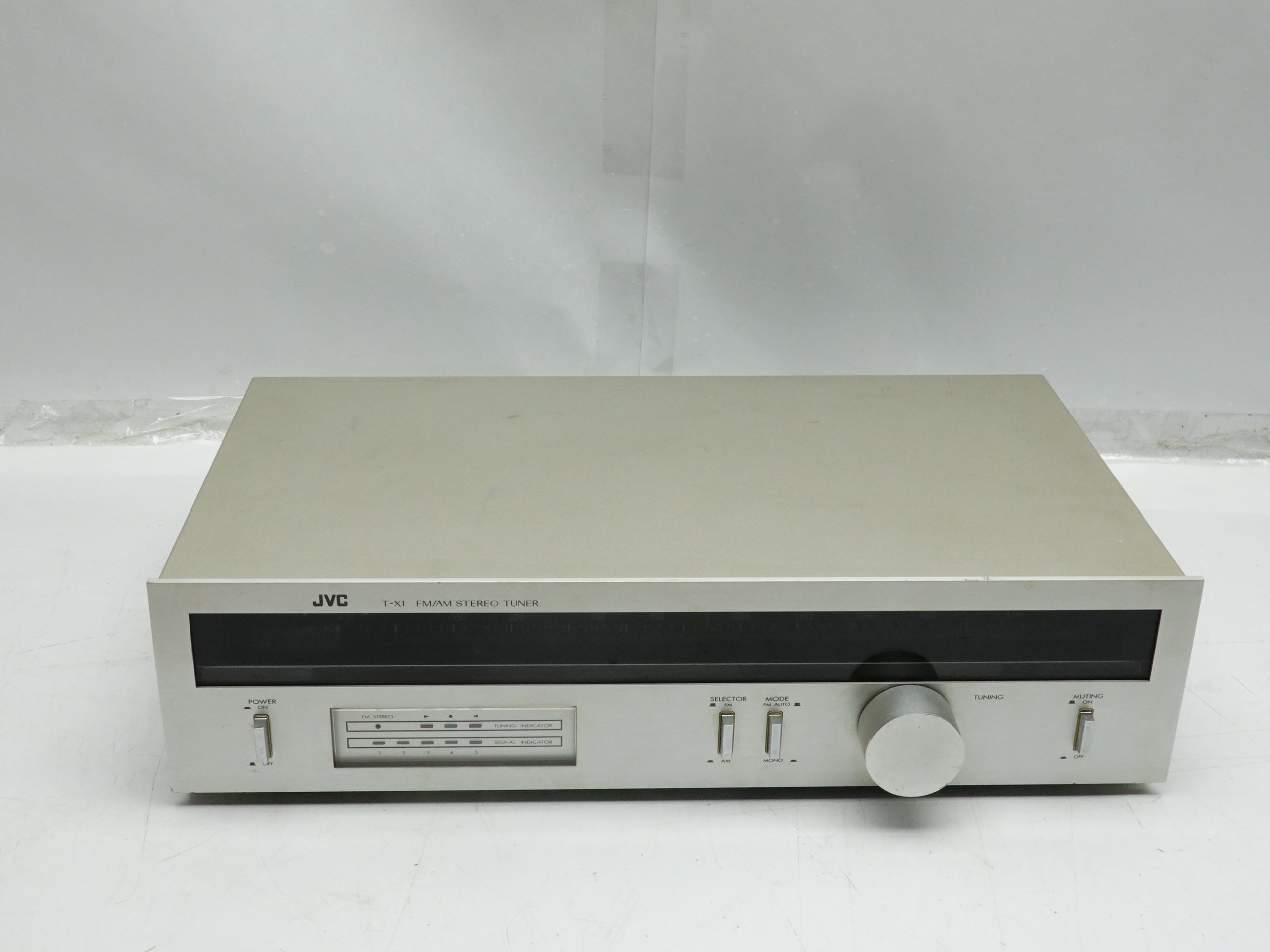

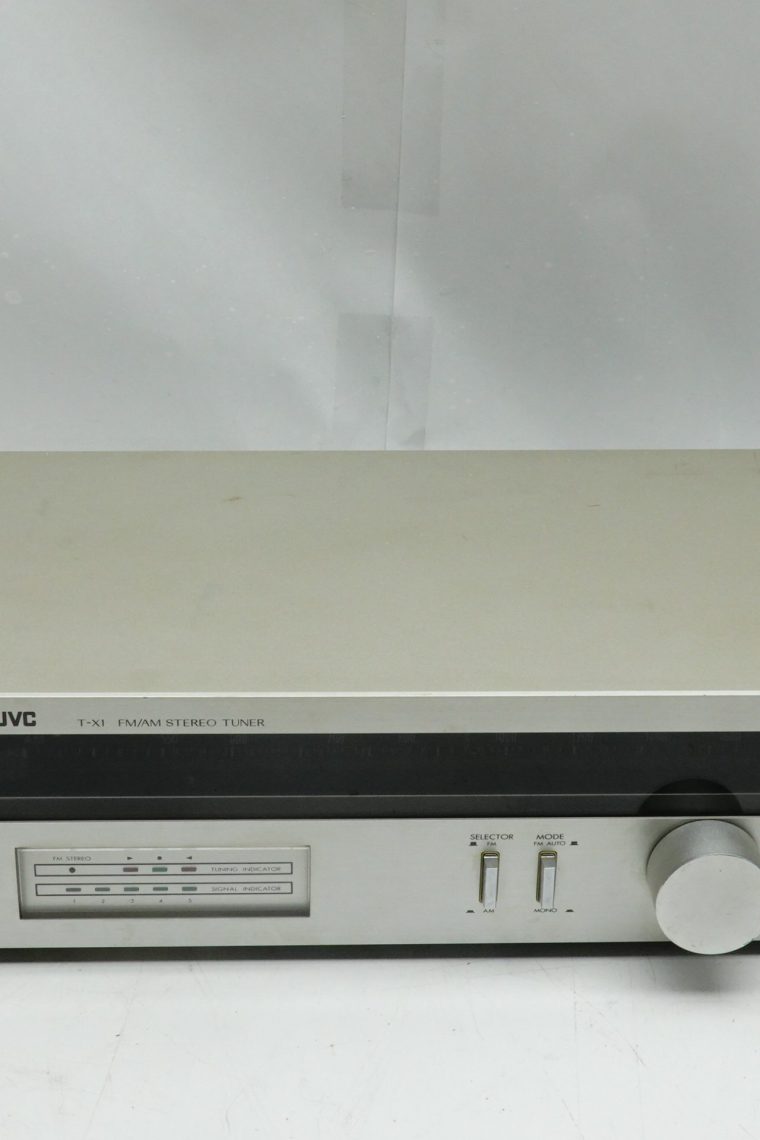

The T-X5 is an AM/FM tuner with excellent reception in both bands. The scale is nicely backlit and there are indicators in the front making it easy to close in on a station. Interesting features is the part of scale is lit up that belong to the actual band. Pressing AM switche and lights up the AM scale.
This unit has been serviced and comes with 6 months warranty.
Description
JVC has already succeeded in developing the high performance PLL (Phase Locked Loop) discriminator that is scarcely affected by variations in enviroment or in ageing.
The tuner incorporating the PLL discriminator has been made available to the general public as a proposal of a course for development of tuner circuit.
The recent development of the PTL (Phase Tracking Loop) discriminator pursues this prescribed course and is incorporated within the T-X5.
Specifications
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 87.5 to 108 MHz
MW Tuning Range: 525 to 1605 kHz
Sensitivity: 0.9uV (FM), 300uV (MW)
Signal to Noise Ratio: 78dB (FM), 50dB (MW)
Distortion: 0.15% (FM), 0.5% (MW)
Selectivity: 65dB (FM), 45dB (MW)
Frequency response: 30Hz to 15kHz (FM)
Output: 560mV (FM), 350mV (MW)
Dimensions: 89 x 450 x 364mm
Weight: 5kg
Year: 1979
