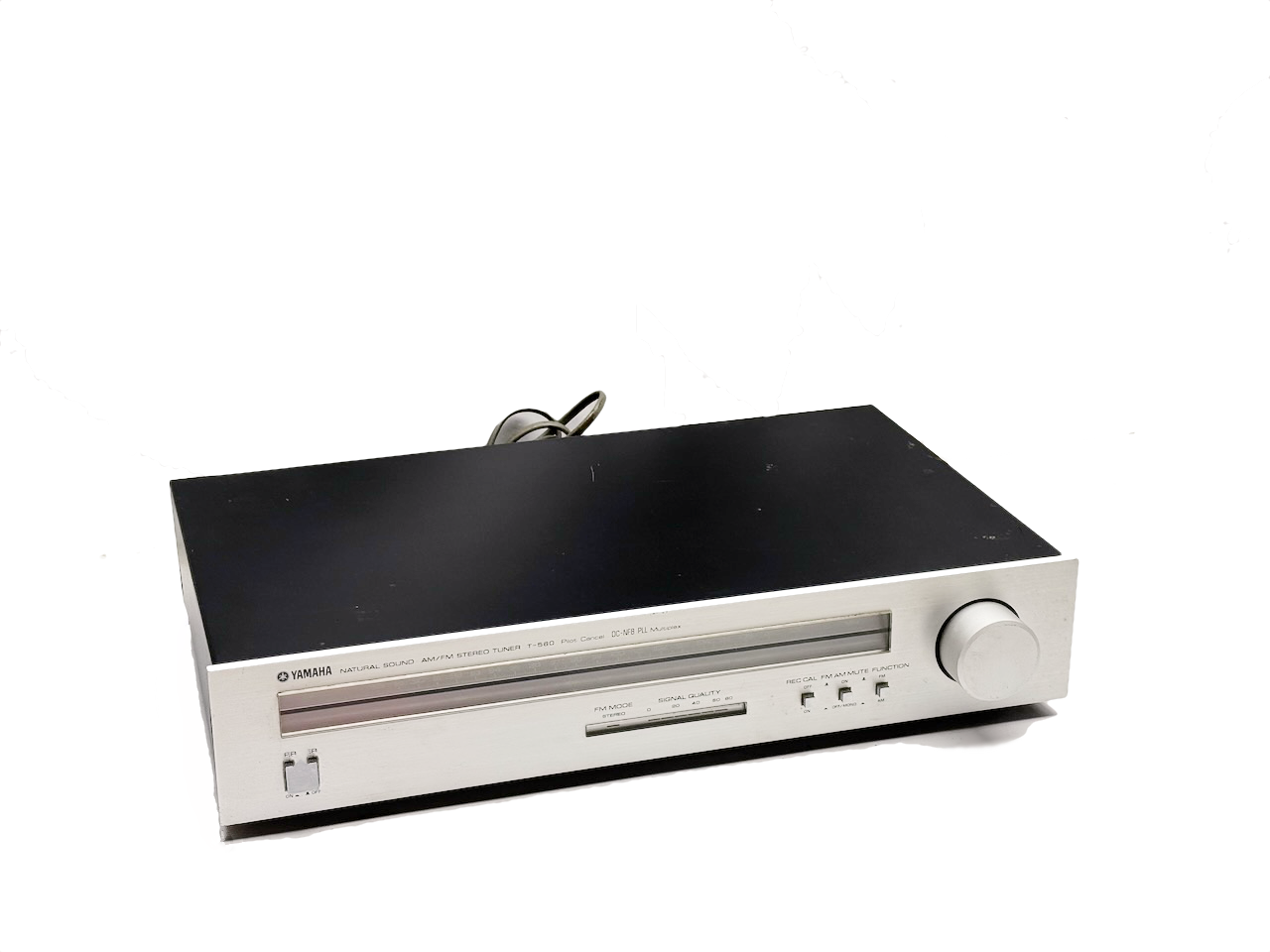

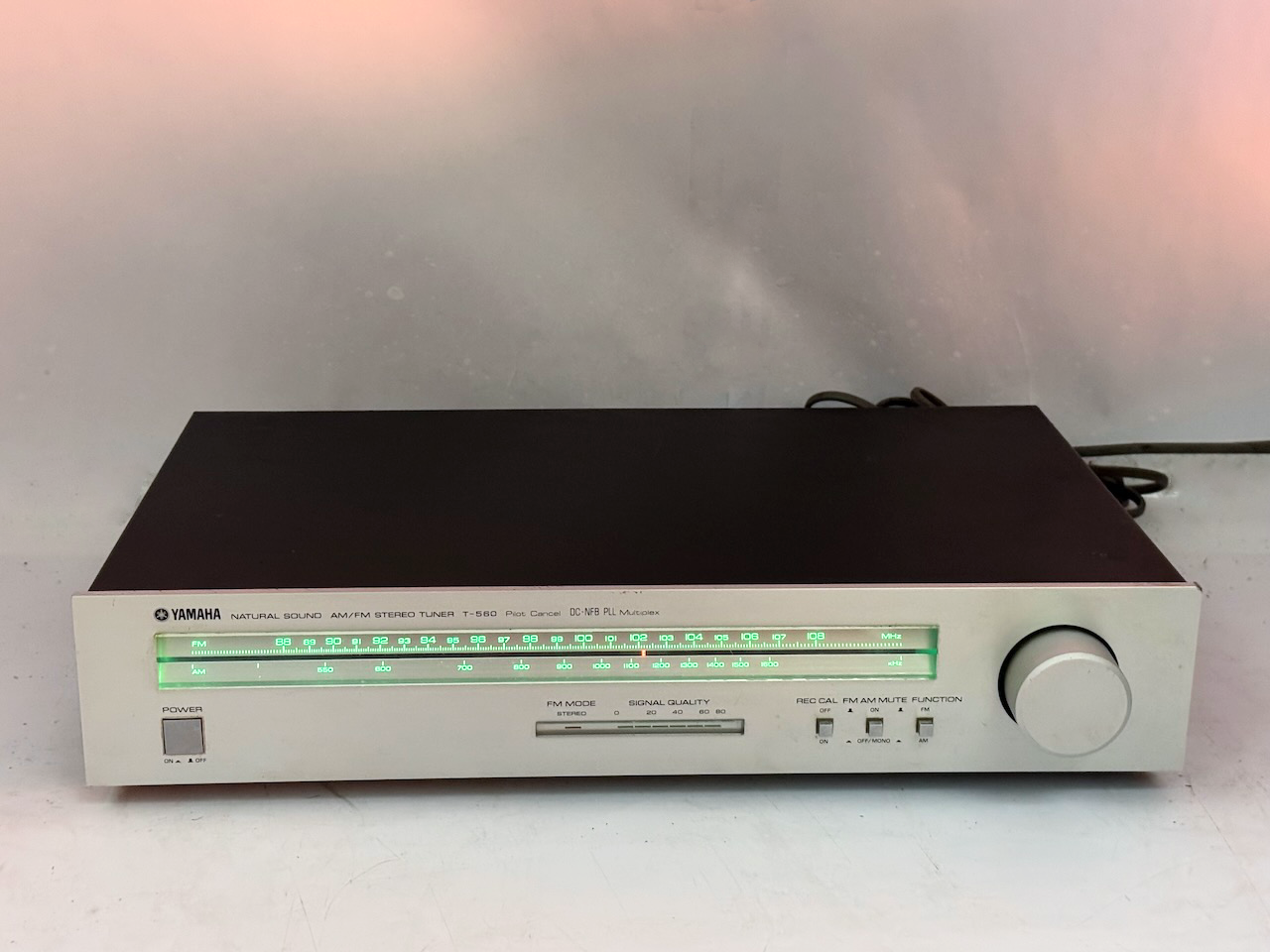

Beautiful tuner from the early 80ties with analog scale/tuning and colored indicators that light up showing signal strength and tuning direction. This unit has been serviced and comes as all our tuners with 6 months warranty.
Specifications
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 87.6 to 108 MHz
MW Tuning Range: 525 to 1605 kHz
Sensitivity: 1.9uV (FM), 10uV (MW)
Signal to Noise Ratio: 84dB (FM), 55dB (MW)
Distortion: 0.1% (FM), 0.3% (MW)
Selectivity: 27dB (MW)
Frequency response: 30Hz to 15kHz (FM)
Output: 500mV (FM), 180mV (MW)
Semiconductors: 19 x transistors, 6 x IC, 1 x FET, 10 x LED, 17 x diodes
Dimensions: 435 x 92 x 305mm
Weight: 3.7kg
Year: 1981
