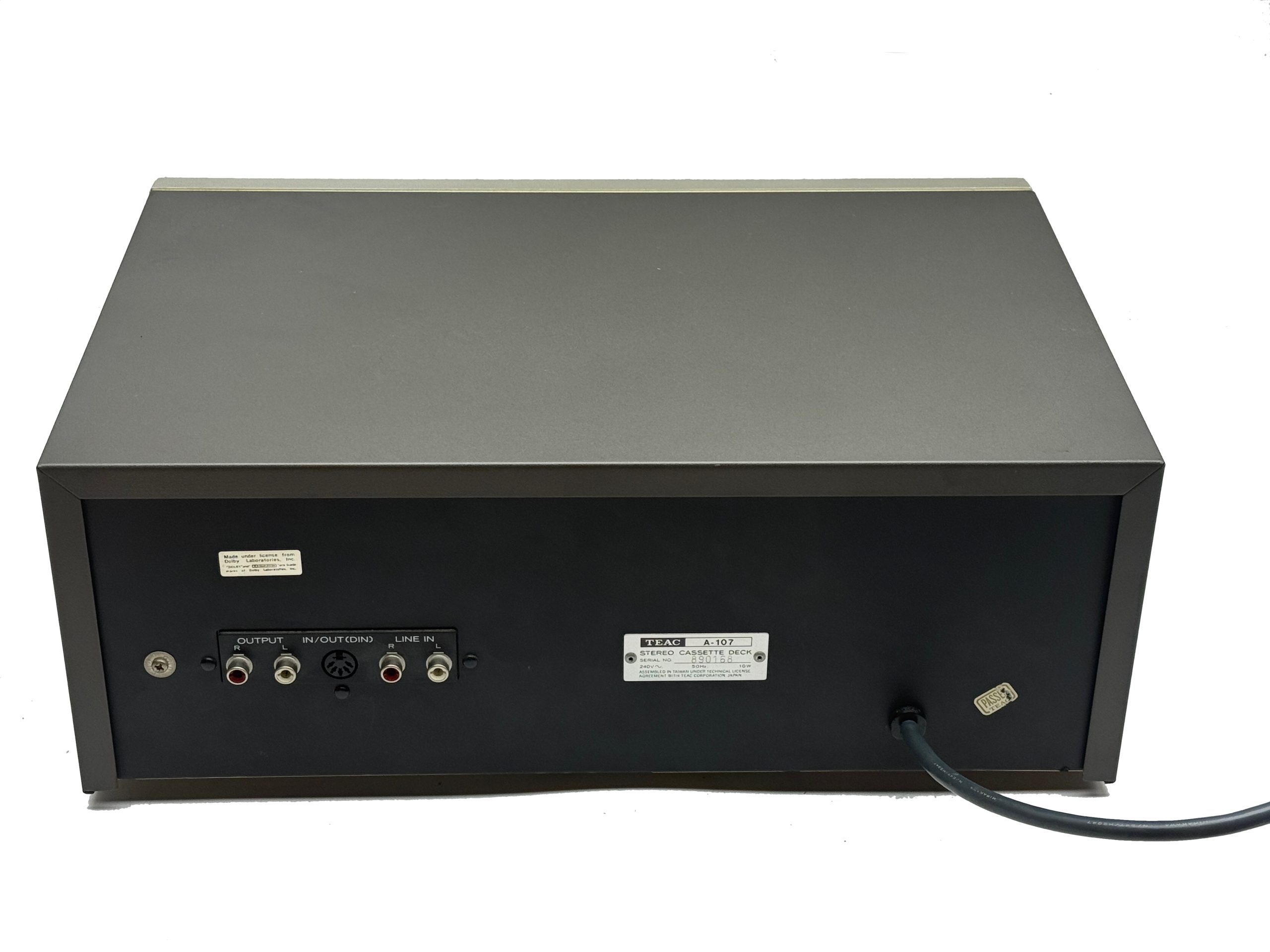

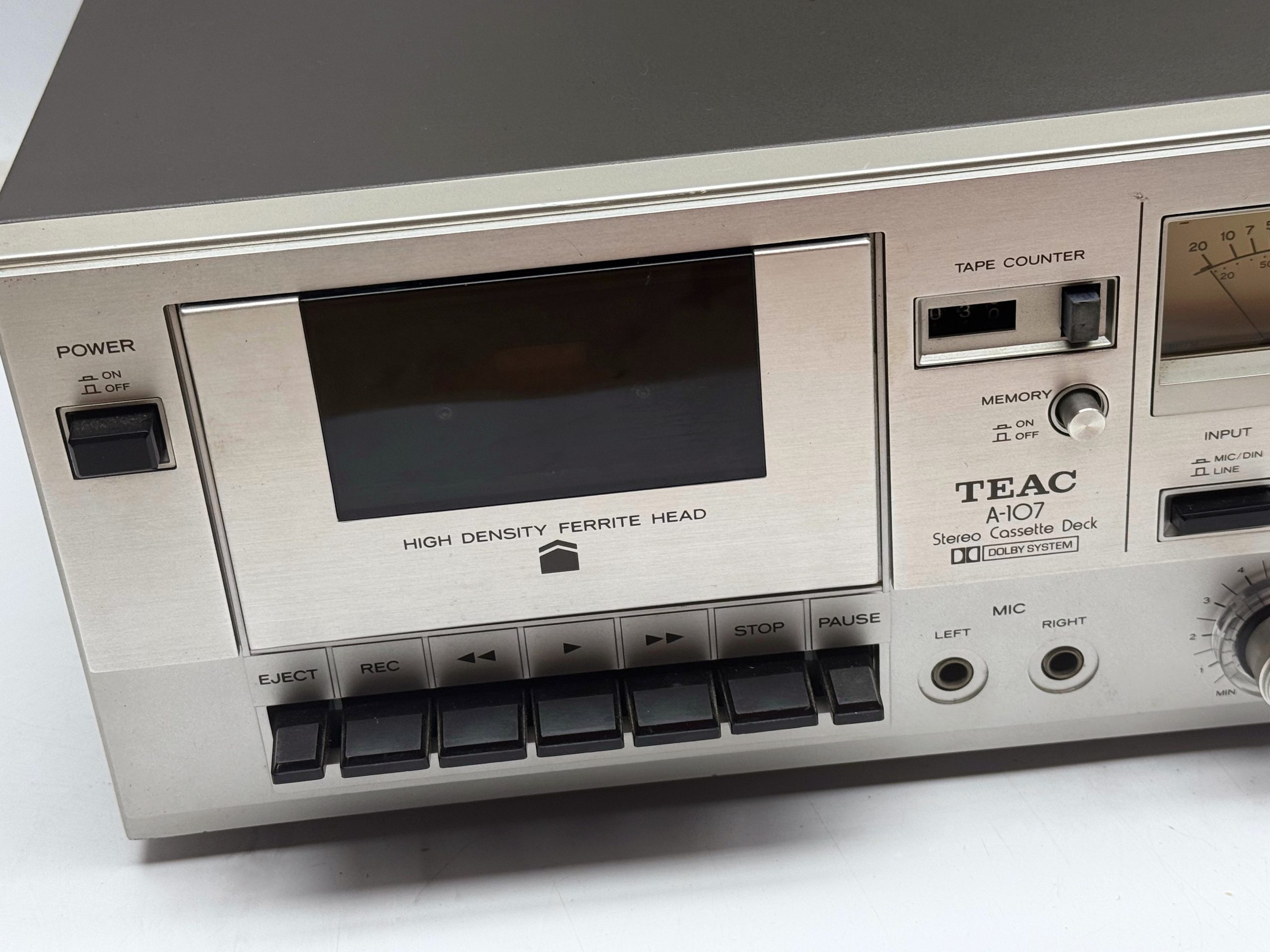

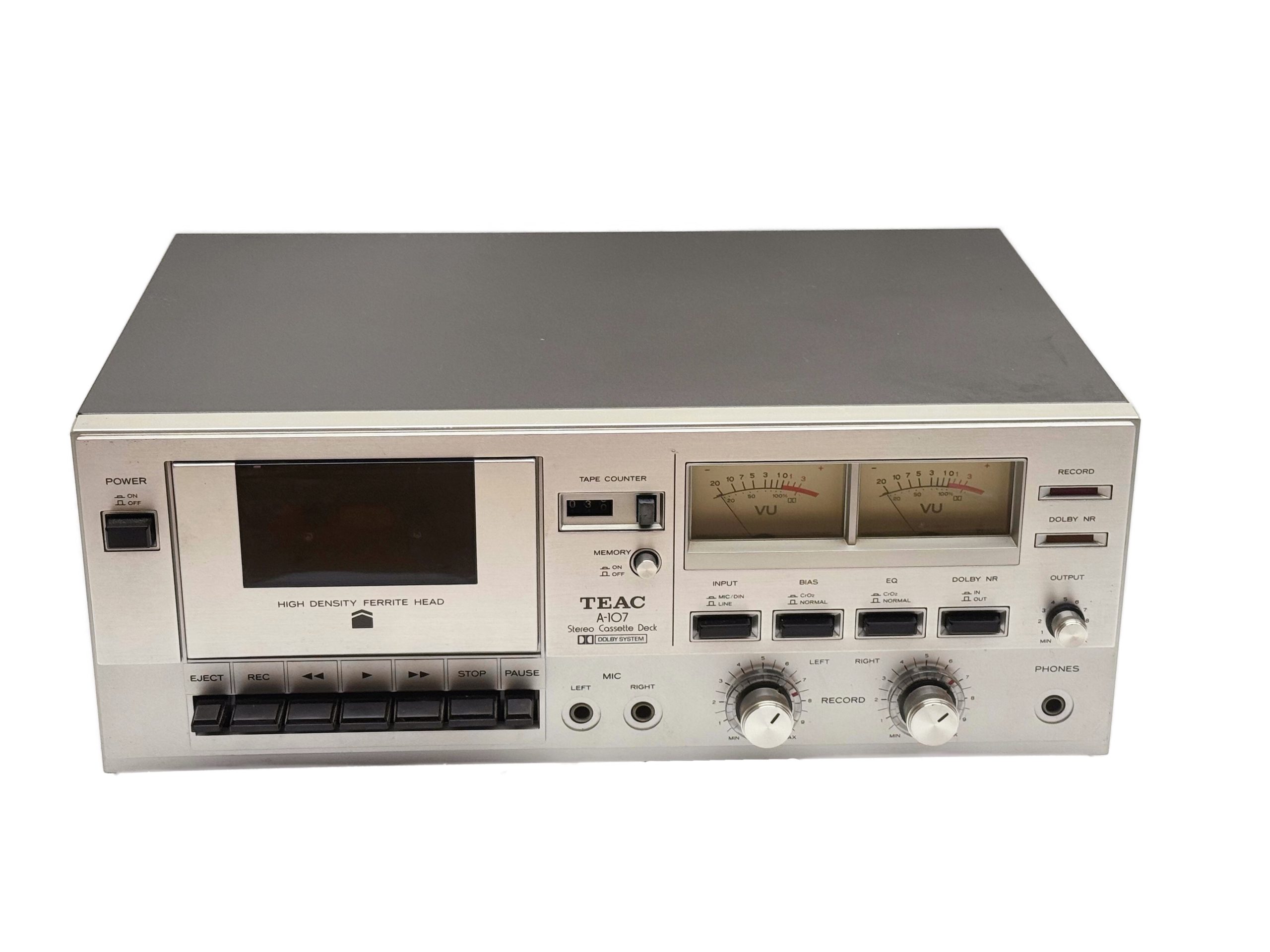

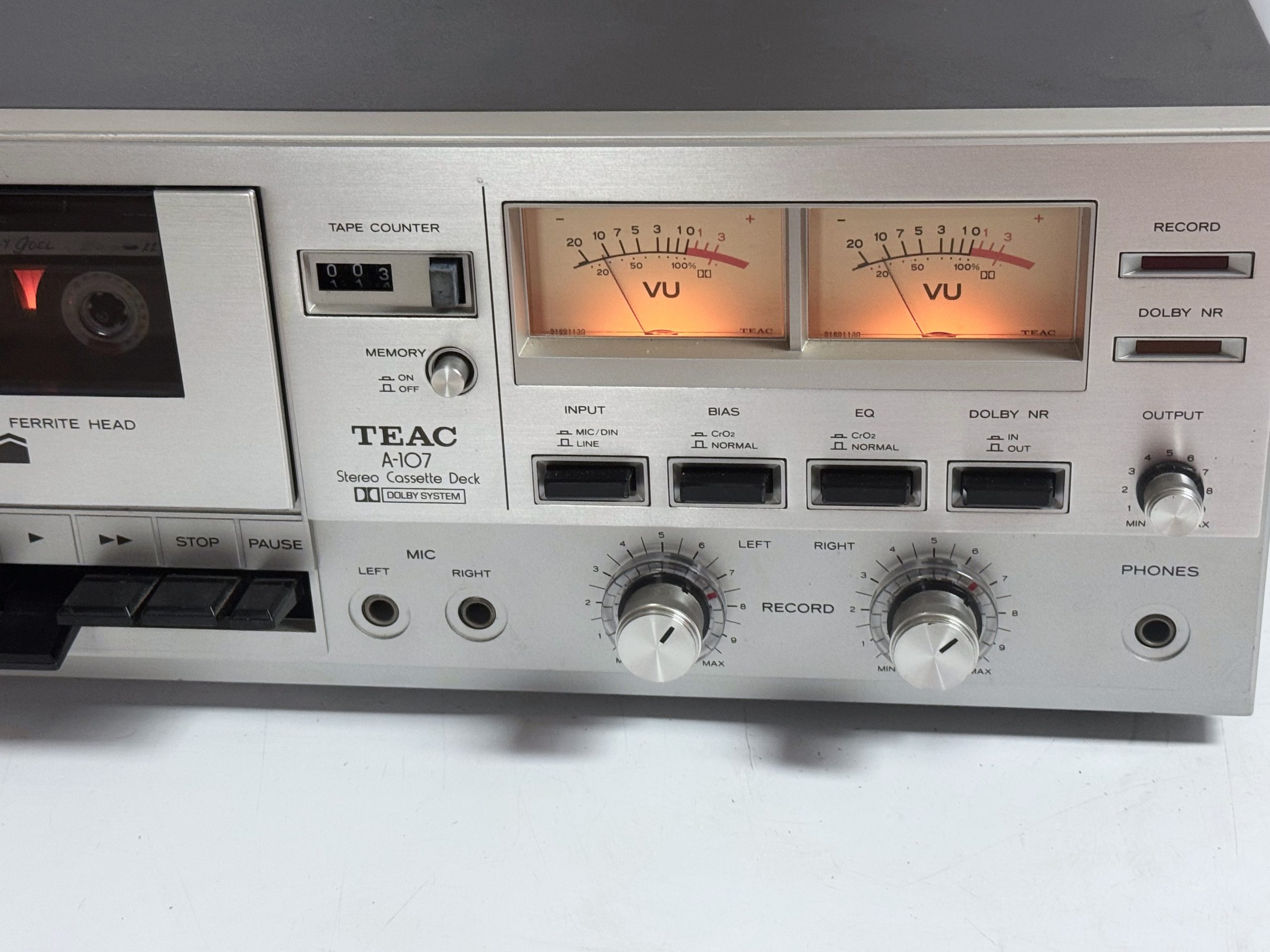

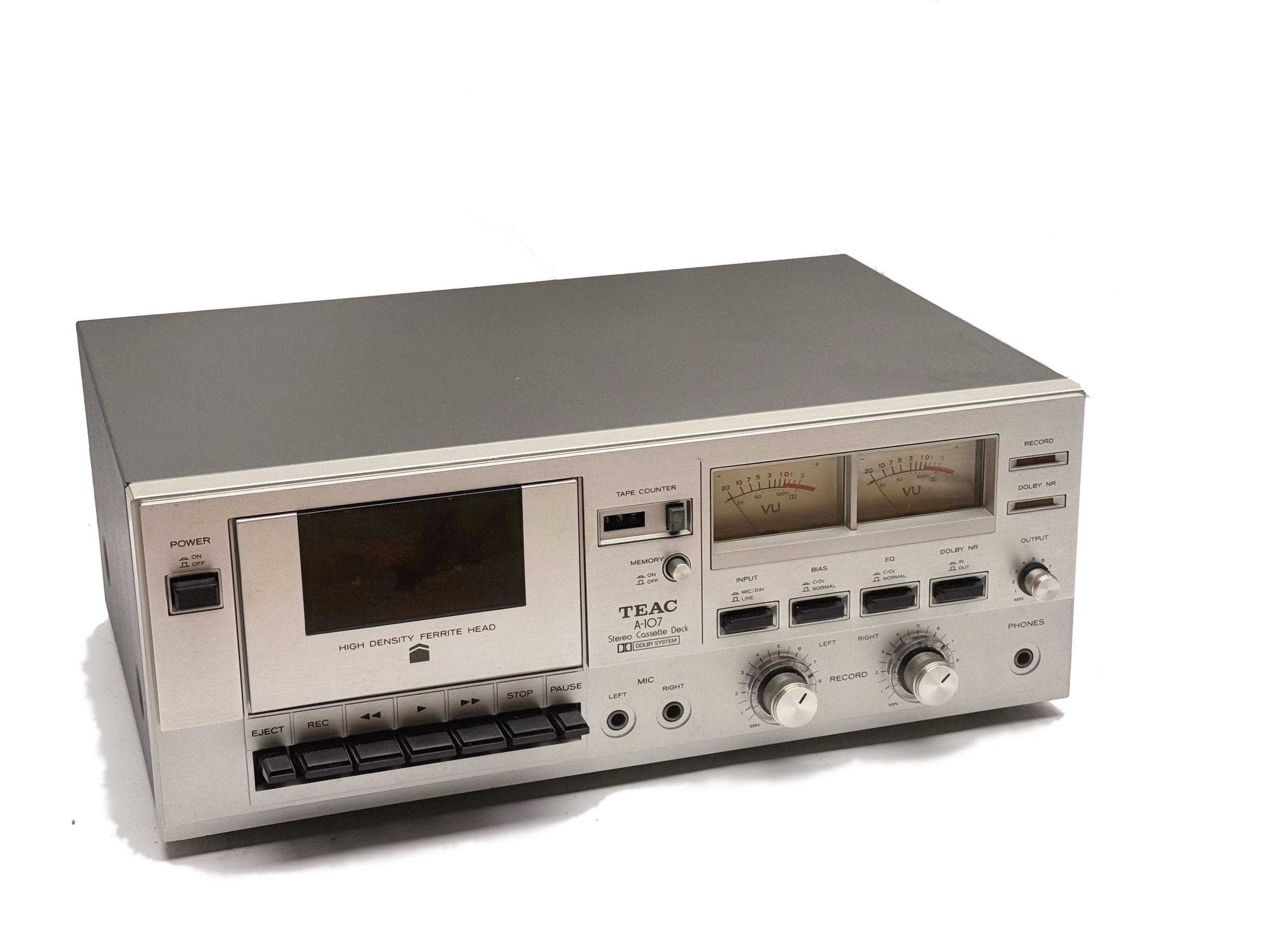

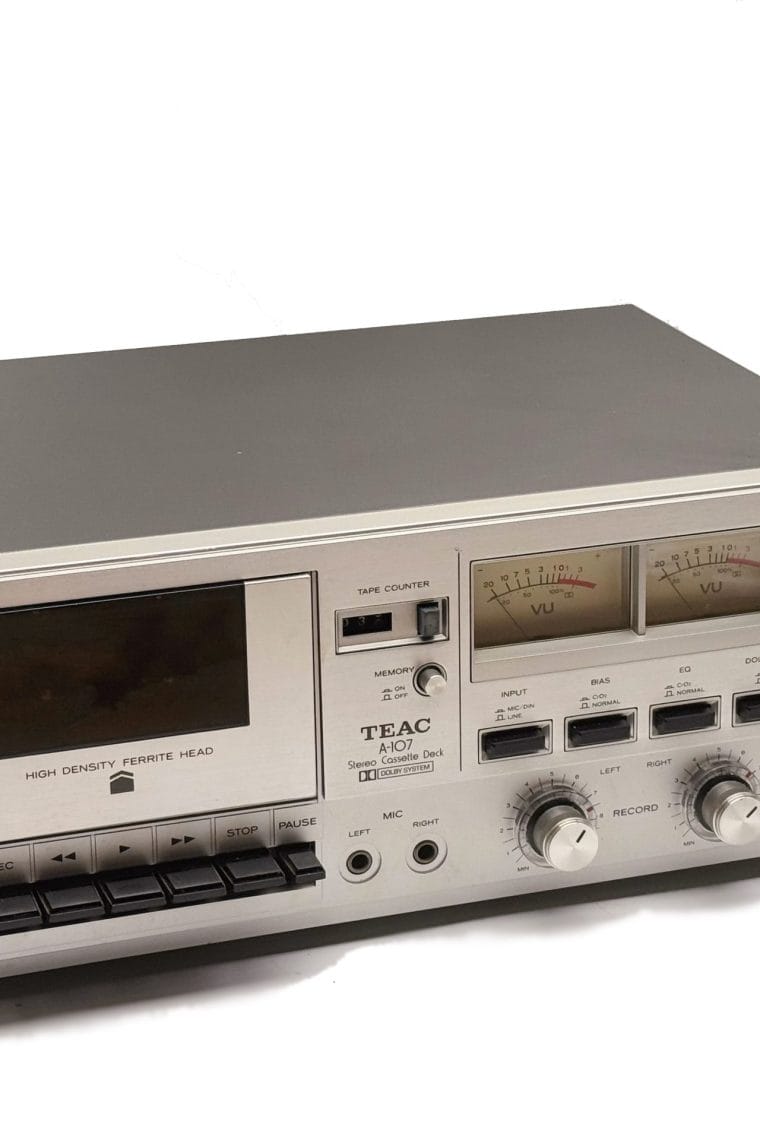

The TEAC A-107 is a beautiful cassette deck from the later 70ties. It comes with two large backlit VU meters, Dolby NR noise reduction, adjustable output volume and memory function. It was the top of the line of the A-10x series!
This unit has been serviced:
- New Capstan Belt
- New Capstan Motor
- Cleaning of heads and capstan
- Demagnetisation of heads
- Treatment of pinch roller
- Speed calibration
- Playback level calibration
- Full function test
Below is a test recording made with the A-107 and played back by it:
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: DC FG servo
Tape Type: type I, CrO2
Noise Reduction: B
Signal to Noise Ratio: 55dB (dolby B)
Wow and Flutter: 0.1%
Total Harmonic Distortion: 2.5%
Input: 275mV (line), 0.35mV (mic)
Output: 0.435V (line)
Dimensions: 410 x 154 x 274mm
Weight: 7.5kg
