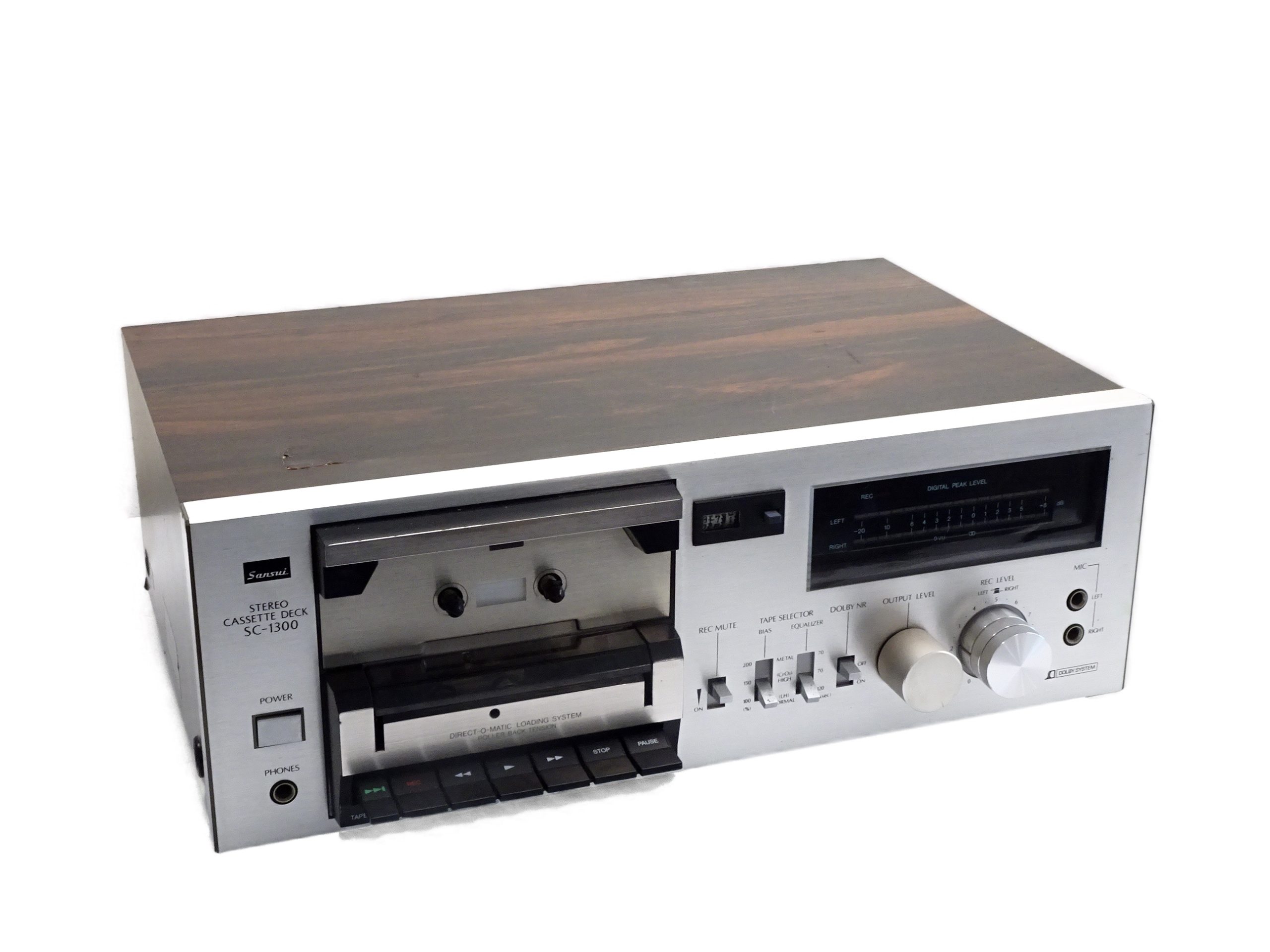

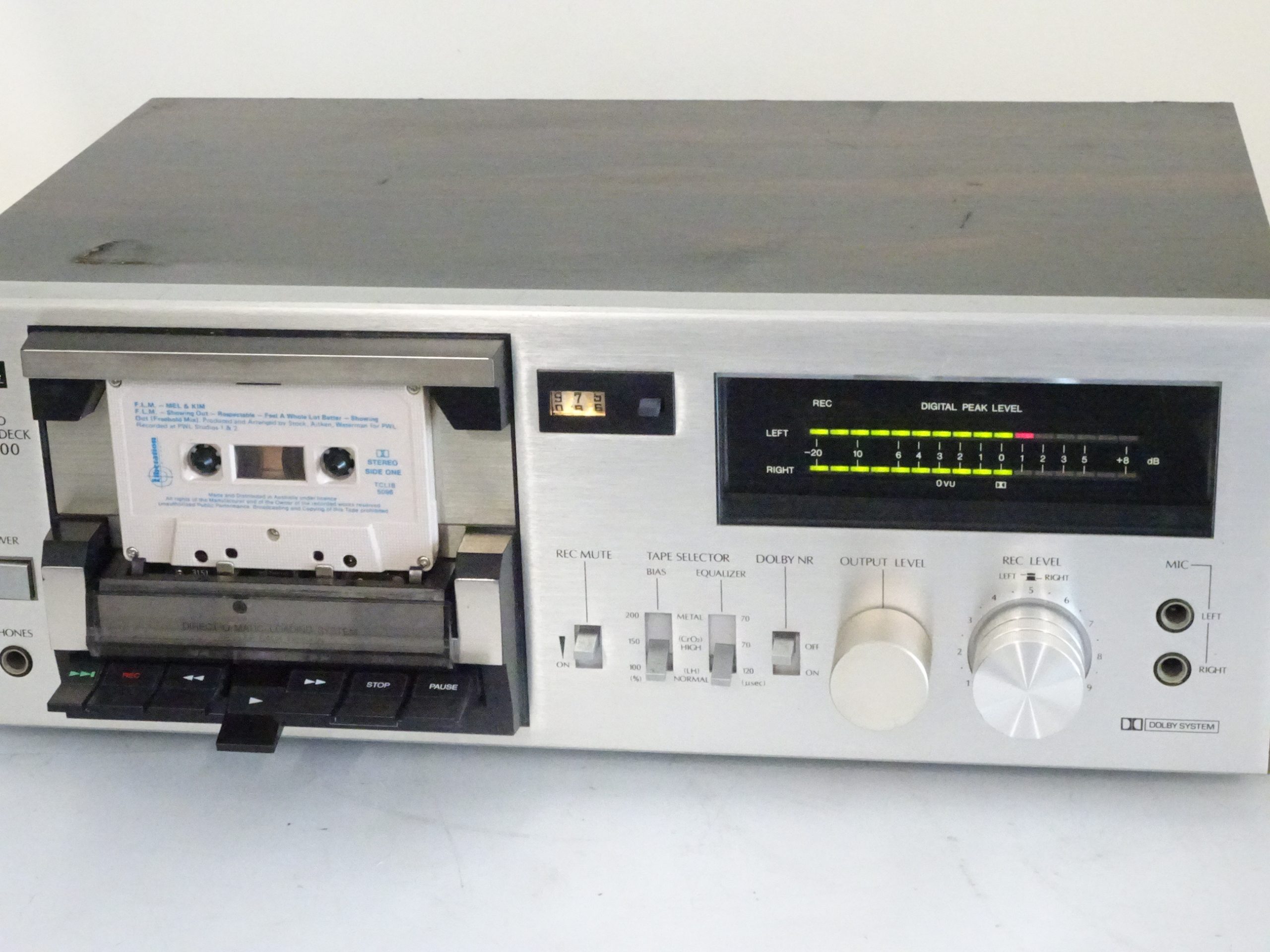

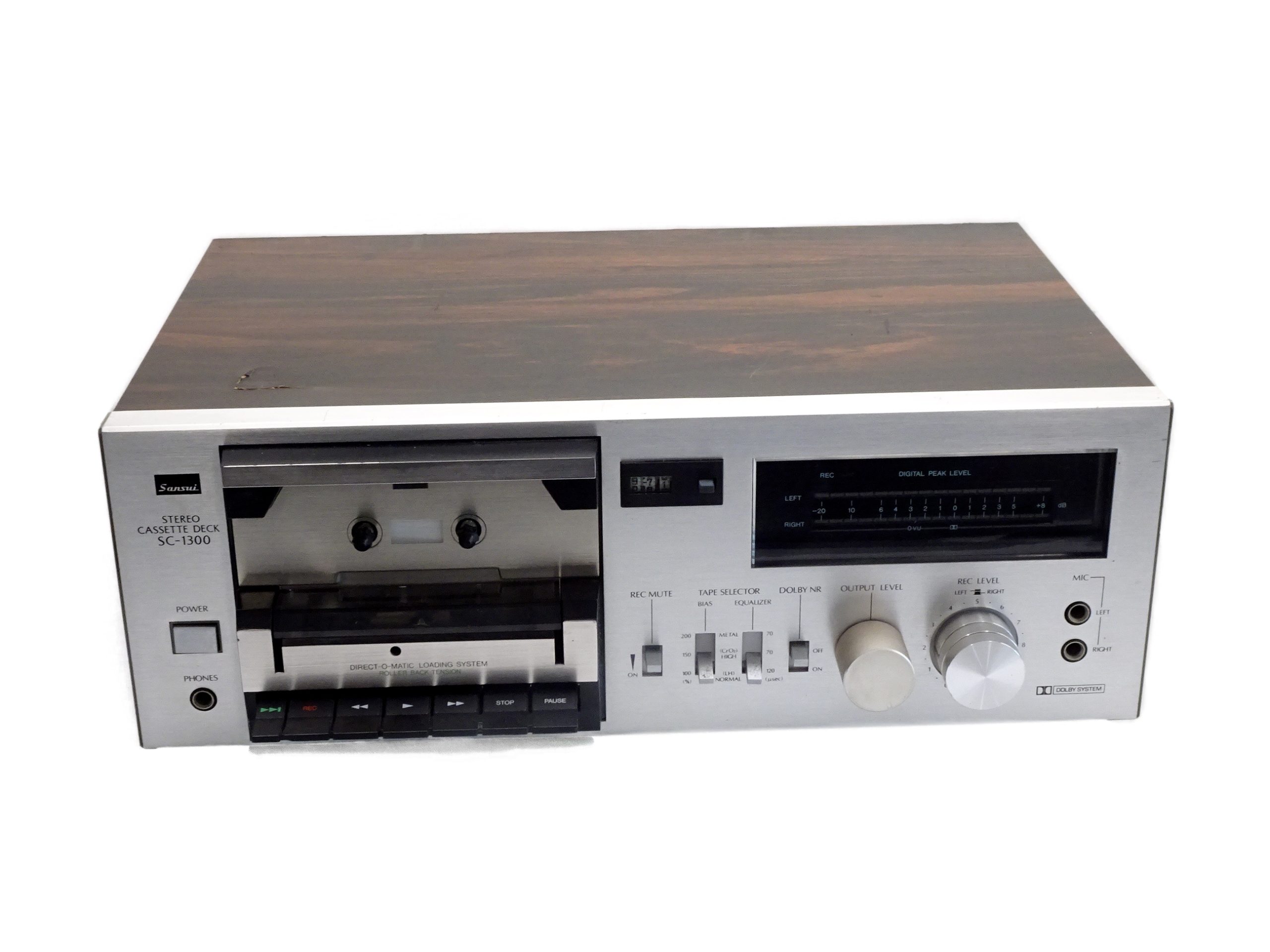

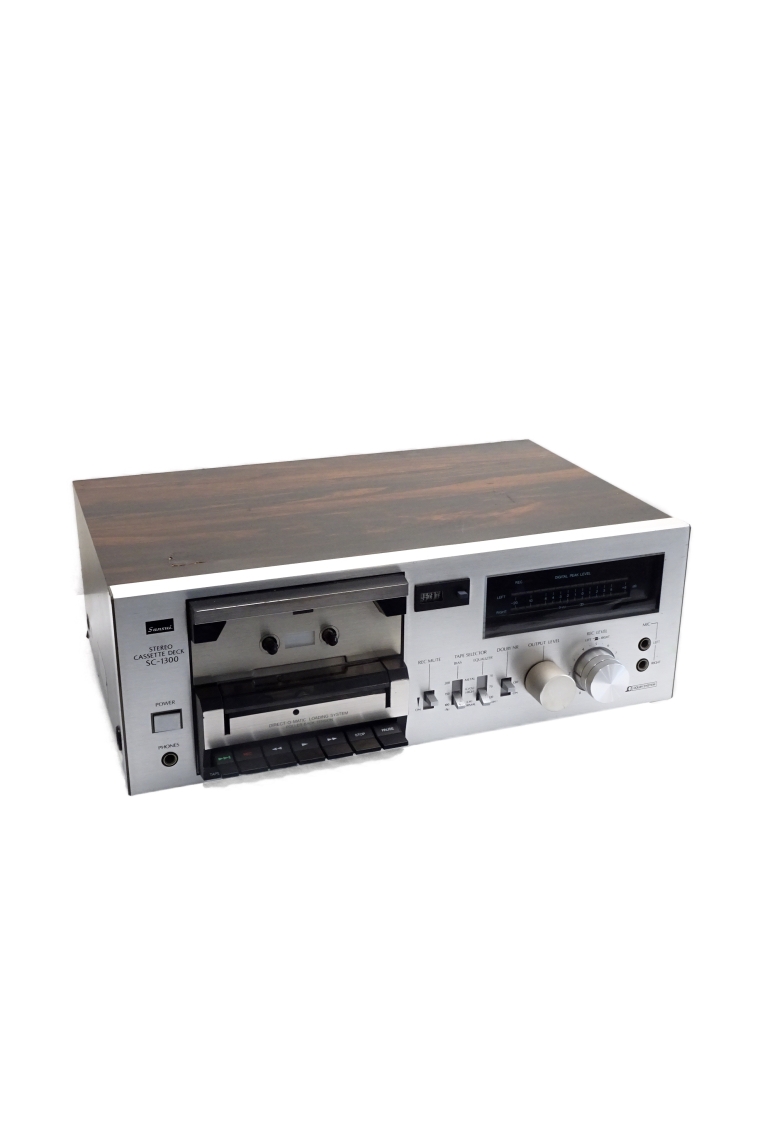

A great looking and even better sounding SANSUI cassette deck. With its open design providing you with the full view of the tape. It also got Dolby B on board and can record on Metal tapes.
We carried out the below service to have the SC-1300 operate at its original specs:
- replacement of capstan belt
- treatment of pinch roller
- cleaning of heads and capstan with IPA
- demagnetisation of heads and capstan
- speed calibration
- full function test
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: electronically controlled DC
Tape Type: type I, CrO2, Metal
Noise Reduction: B
Frequency Response: 20Hz to 18kHz (Metal tape)
Signal to Noise Ratio: 69dB (dolby B)
Wow and Flutter: 0.05%
Input: 70mV (line), 0.3mV (mic)
Output: 0.39V (line)
Dimensions: 433 x 160 x 320mm
Weight: 5.9kg
Year: 1980
