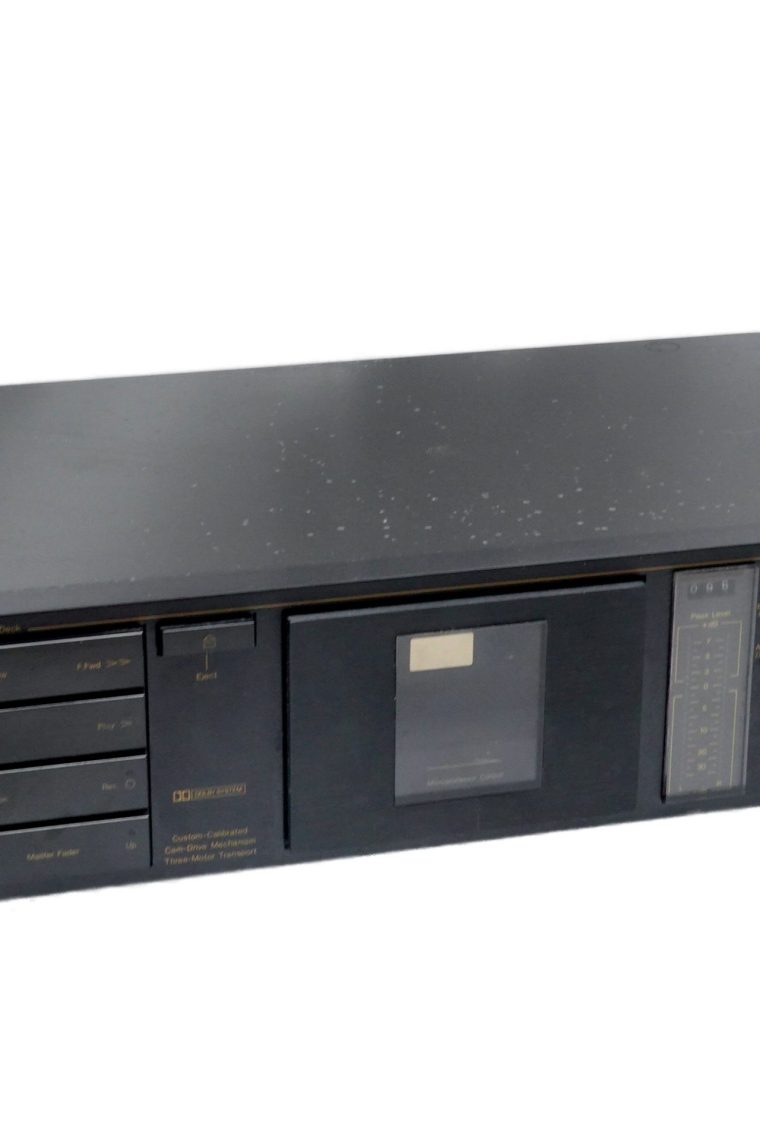

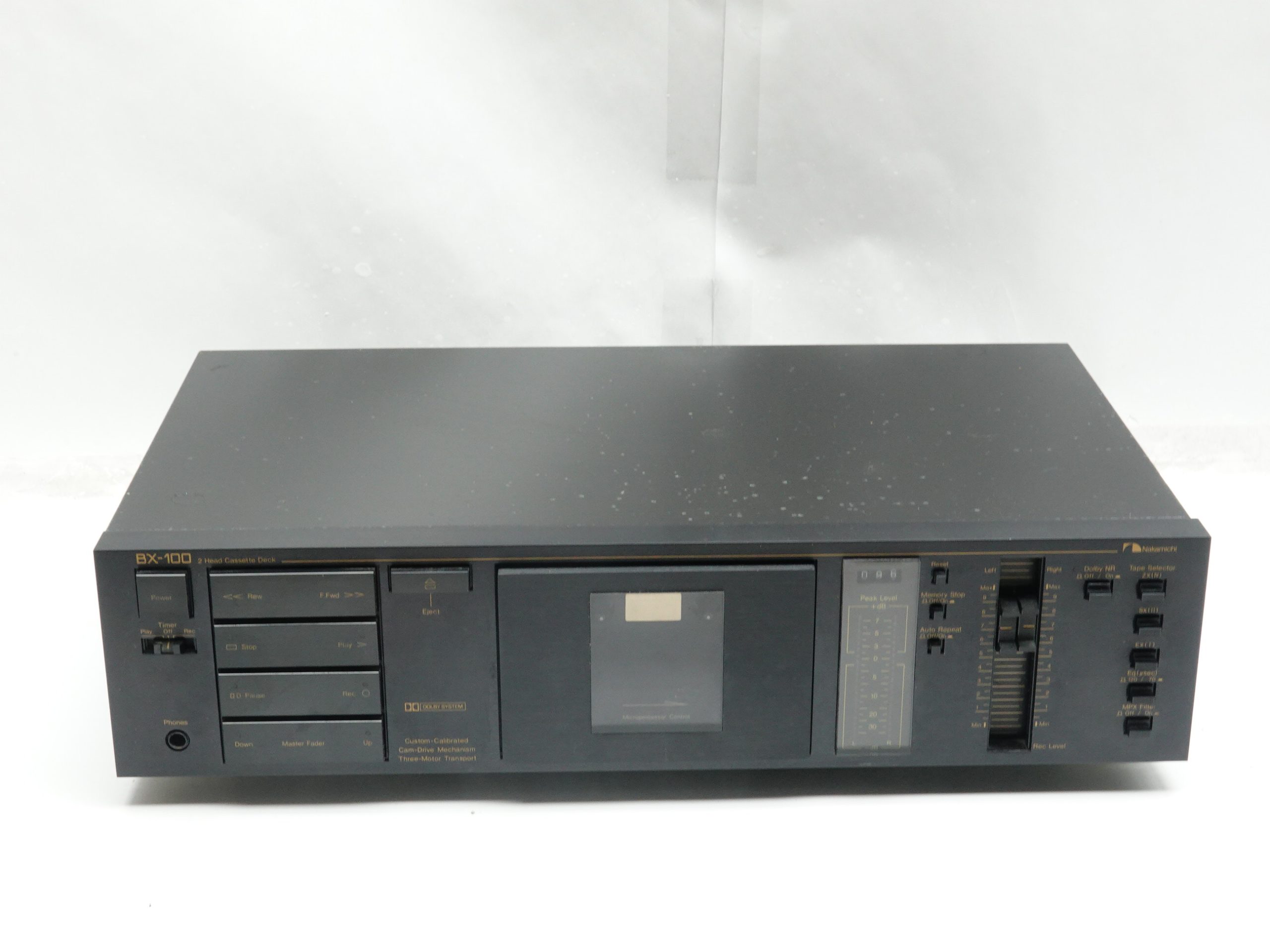

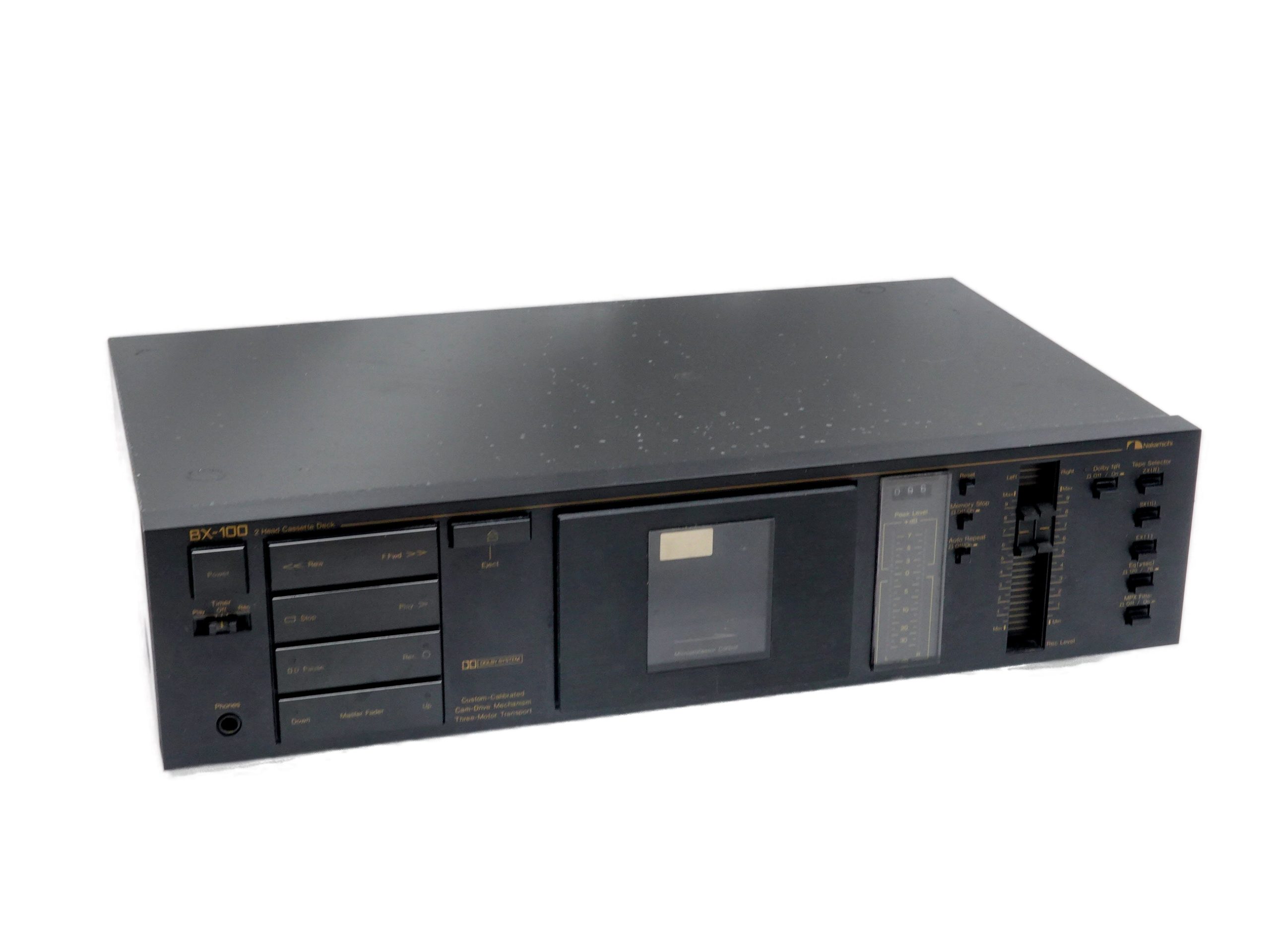

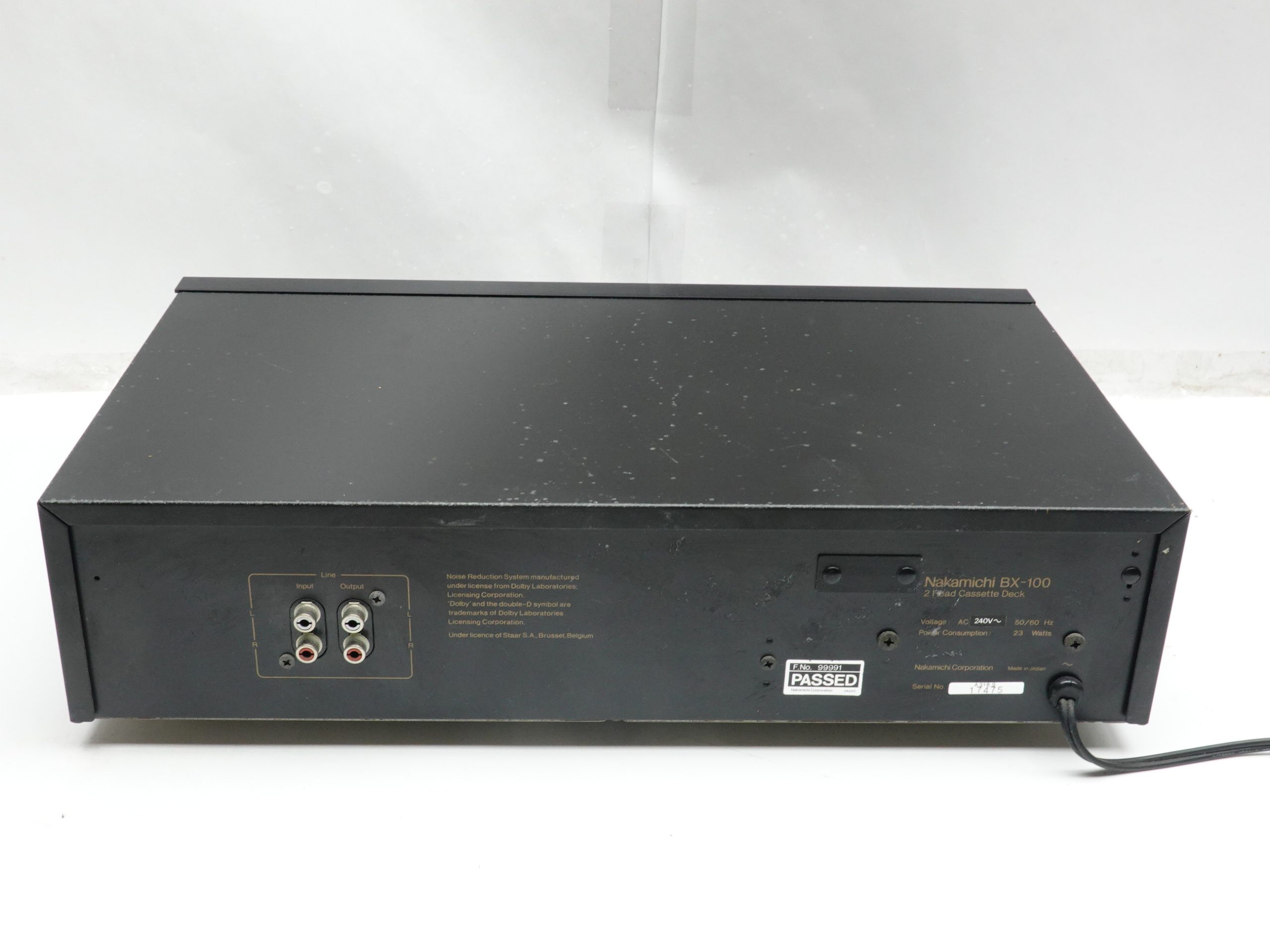

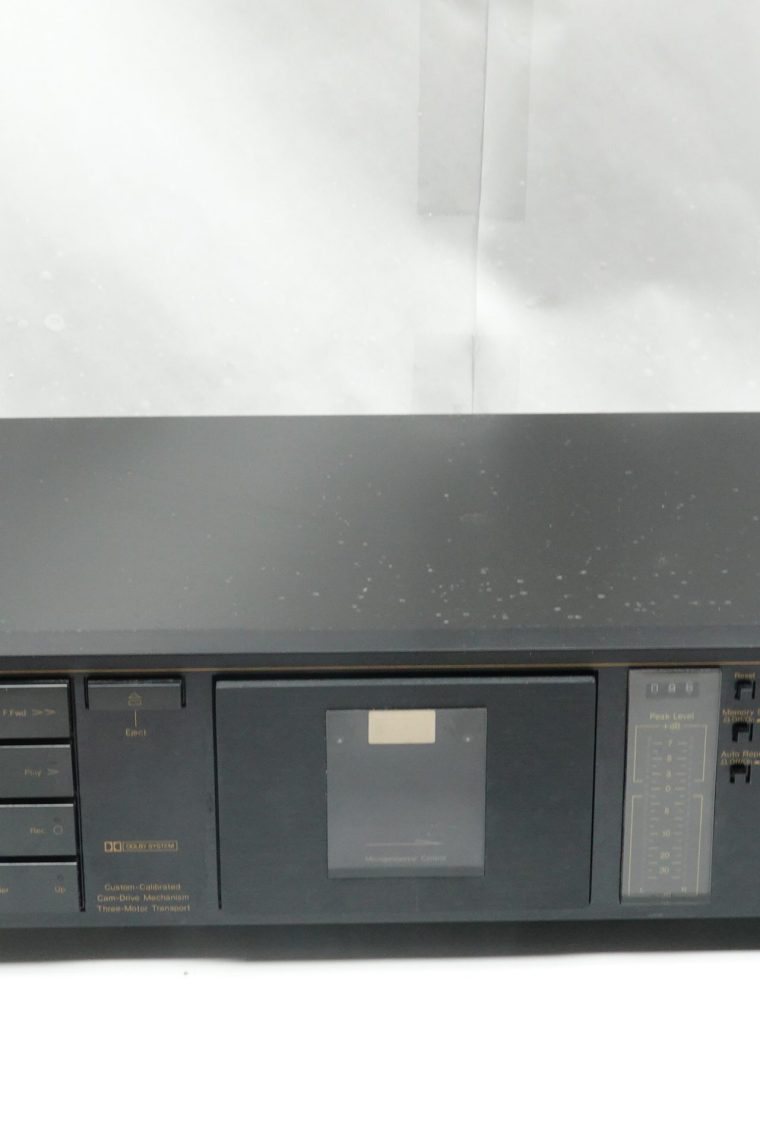

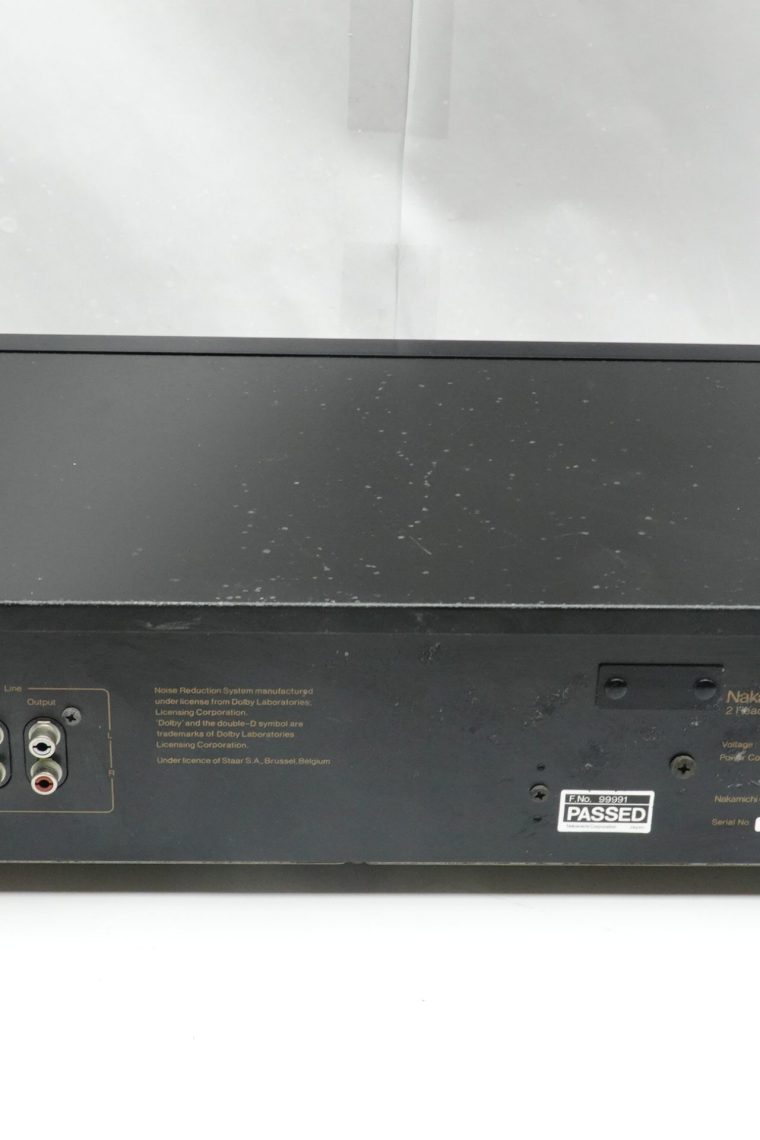

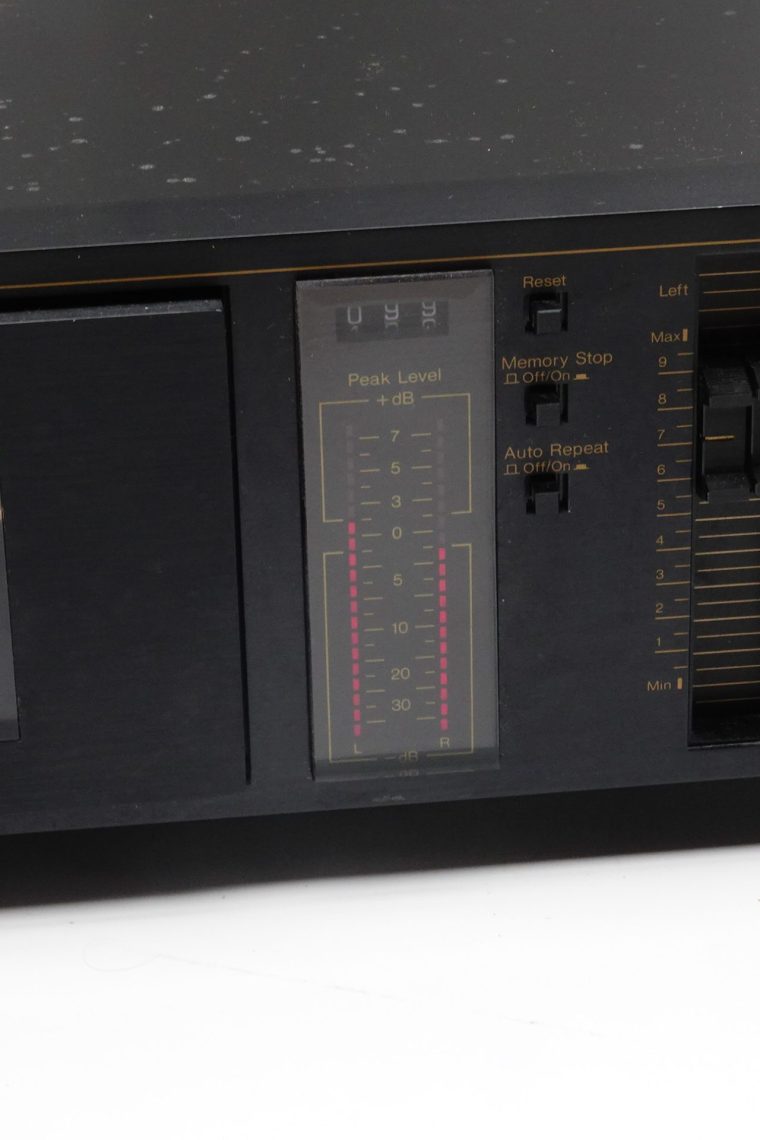

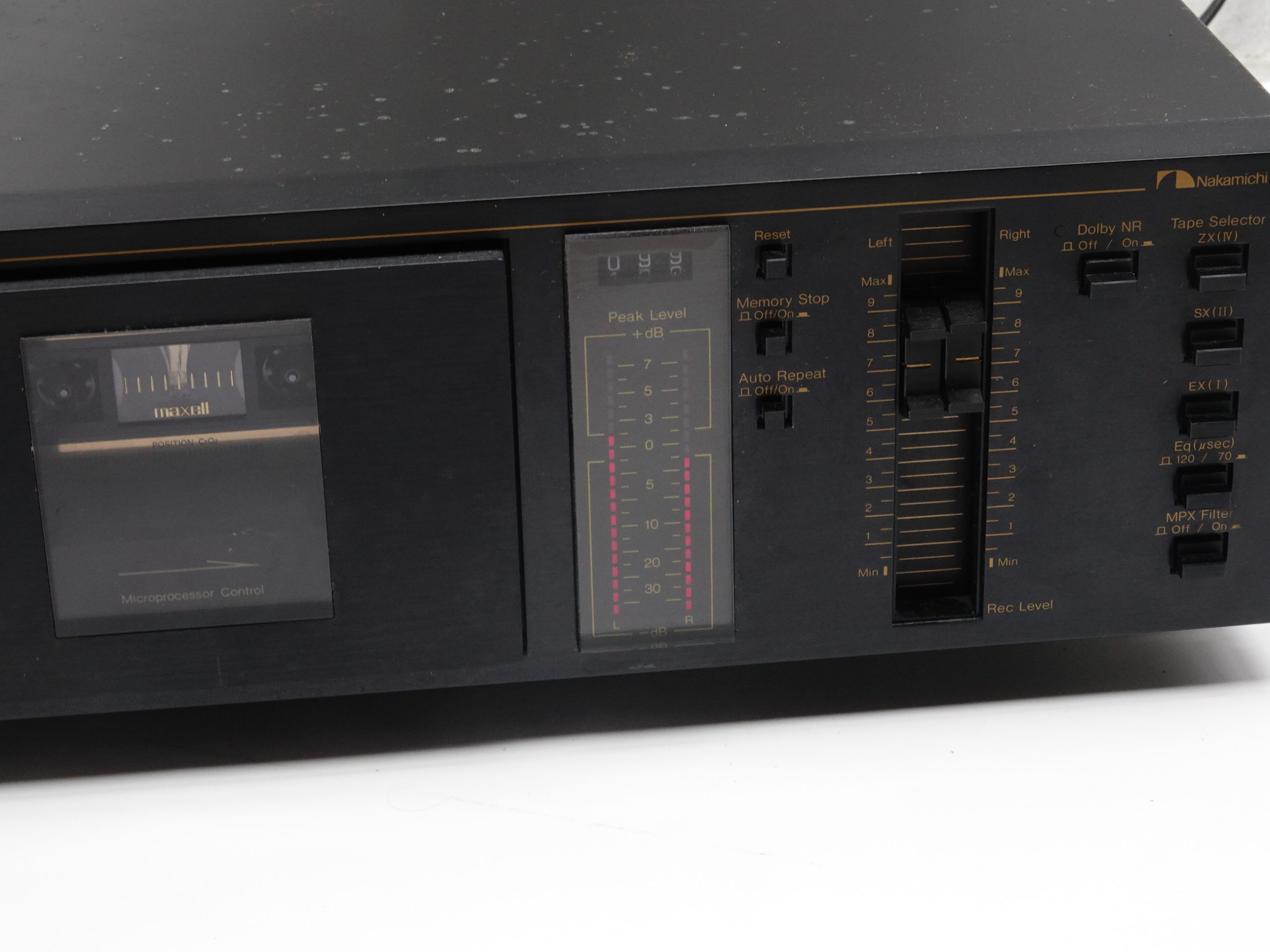

The Nakamich BX-100 is a 2 head cassette deck with an impressive performance. A lot of people do not know that cassette tapes can sound as good as CDs. But it requires a good, serviced medium to high-end cassette deck to use the potential of this medium. The BX-100 is capable enough and you will be impressed by the quality of the recording that you can produce with this deck.
This unit has received hours of service to bring it back to original specs:
- Replacement of Capstan Belt
- Replacement of Idler Tyre
- Lubrication of all moving parts with lithium grease or suitable oils
- Lubrication of capstan shaft with high end Isofles PDP-65 Oil
- Demagnetisation of heads and capstan
- Cleaning of capstan with chemical
- Speed Calibration
- Playback Level Calibration
- Record Level Calibration
- Full function test
Here is a test recording made on the BX-100 on a normal position tape with Dolby B that is played back by it
Description
This model was developed on the basis of this companys extensive experience experience with high grade cassette decks.
While incorporating much of Nakamichis superior technology and following its sound policy, this basic model delivers high overall characteristics and represents an extraordinary value at a moderate price.
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan
Tape Type: type I, CrO2, Metal
Noise Reduction: B
Frequency Response: 20Hz to 20kHz (Metal tape)
Signal to Noise Ratio: 62dB (dolby B)

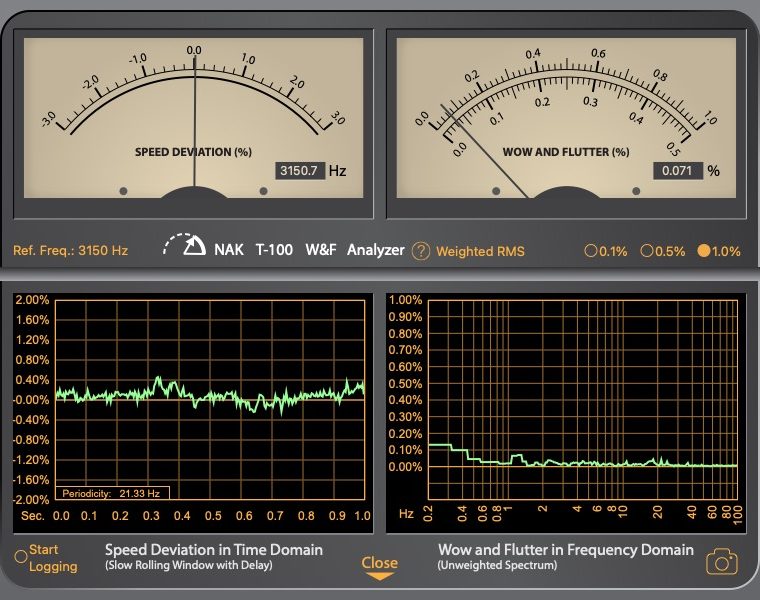

Wow and Flutter: 0.06%
Total Harmonic Distortion: 1.0%
Input: 50mV (line)
Output: 0.5V (line)
Dimensions: 430 x 110 x 250mm
Weight: 5.5kg
Year: 1984
