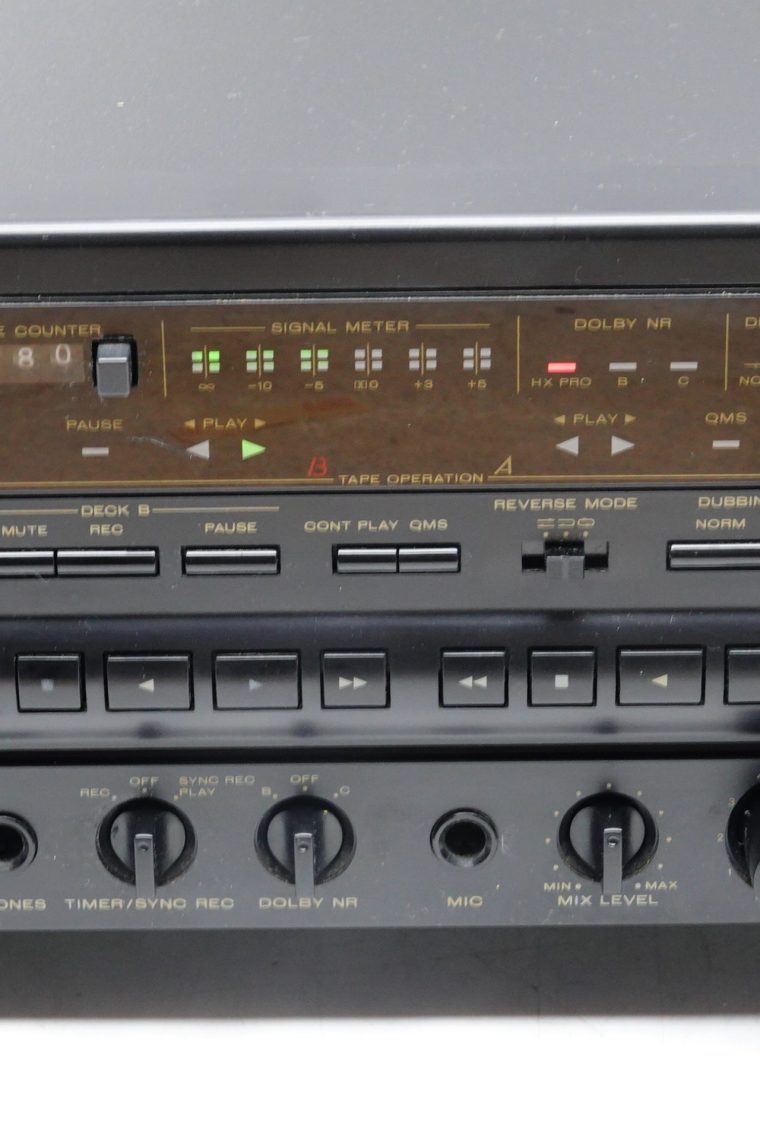

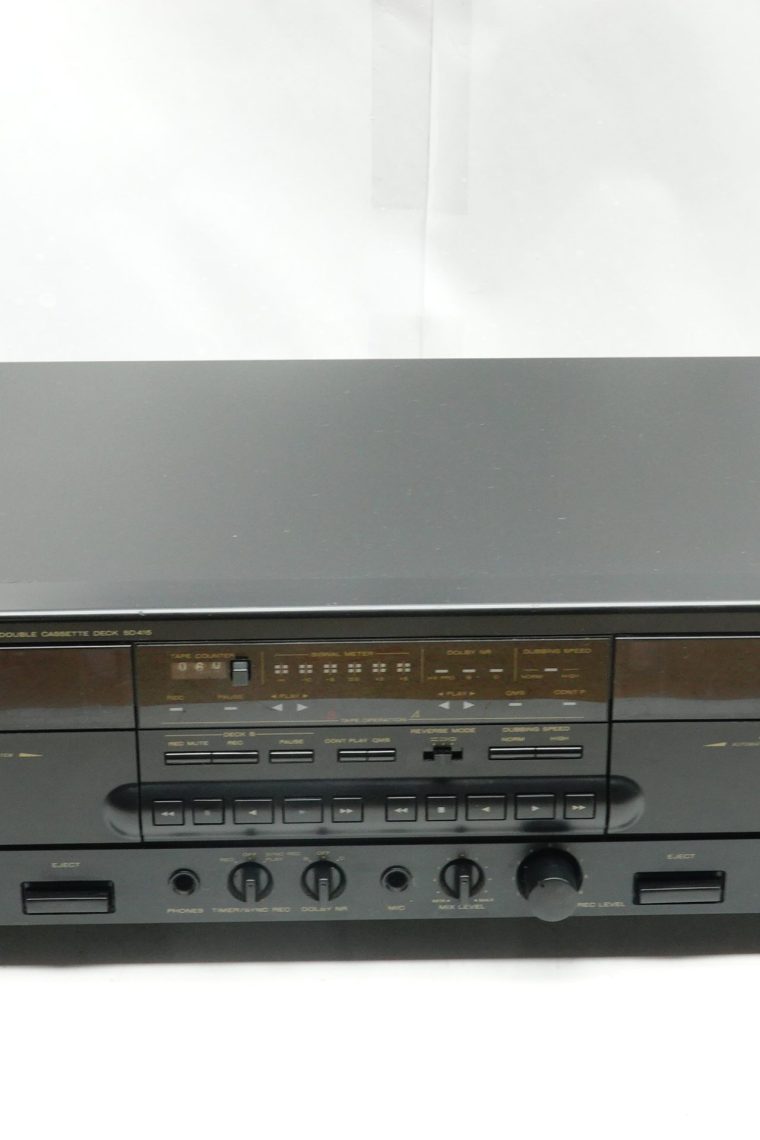

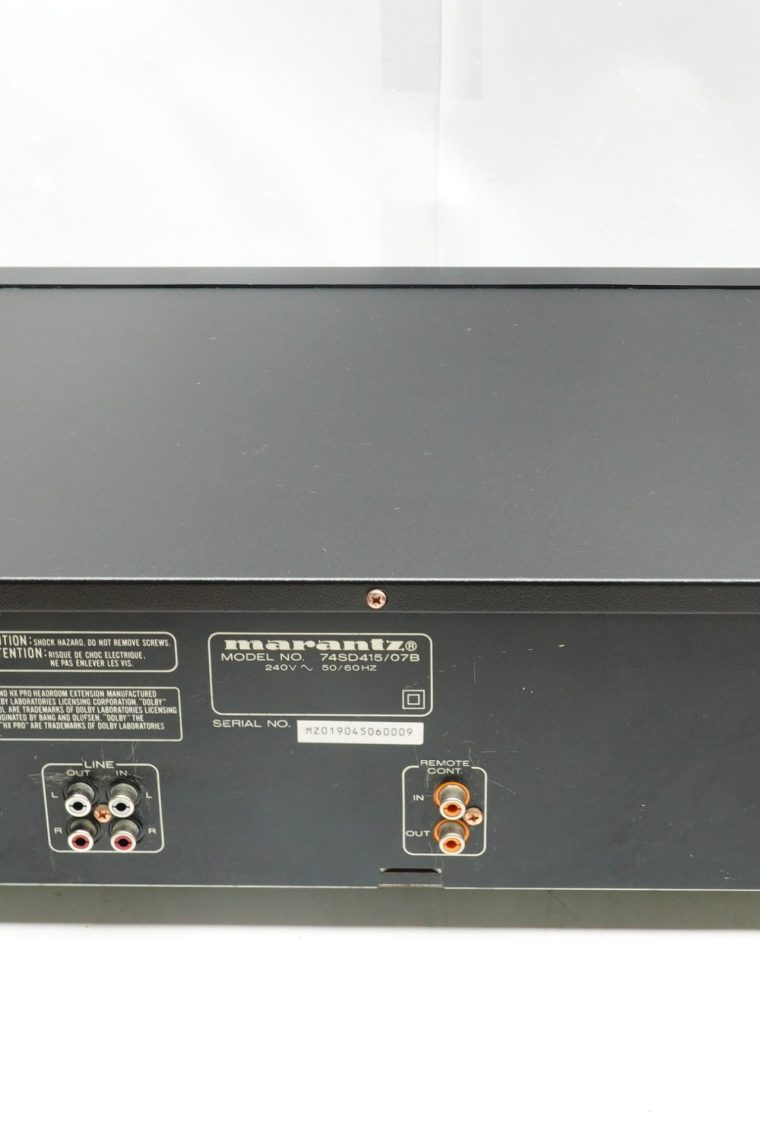

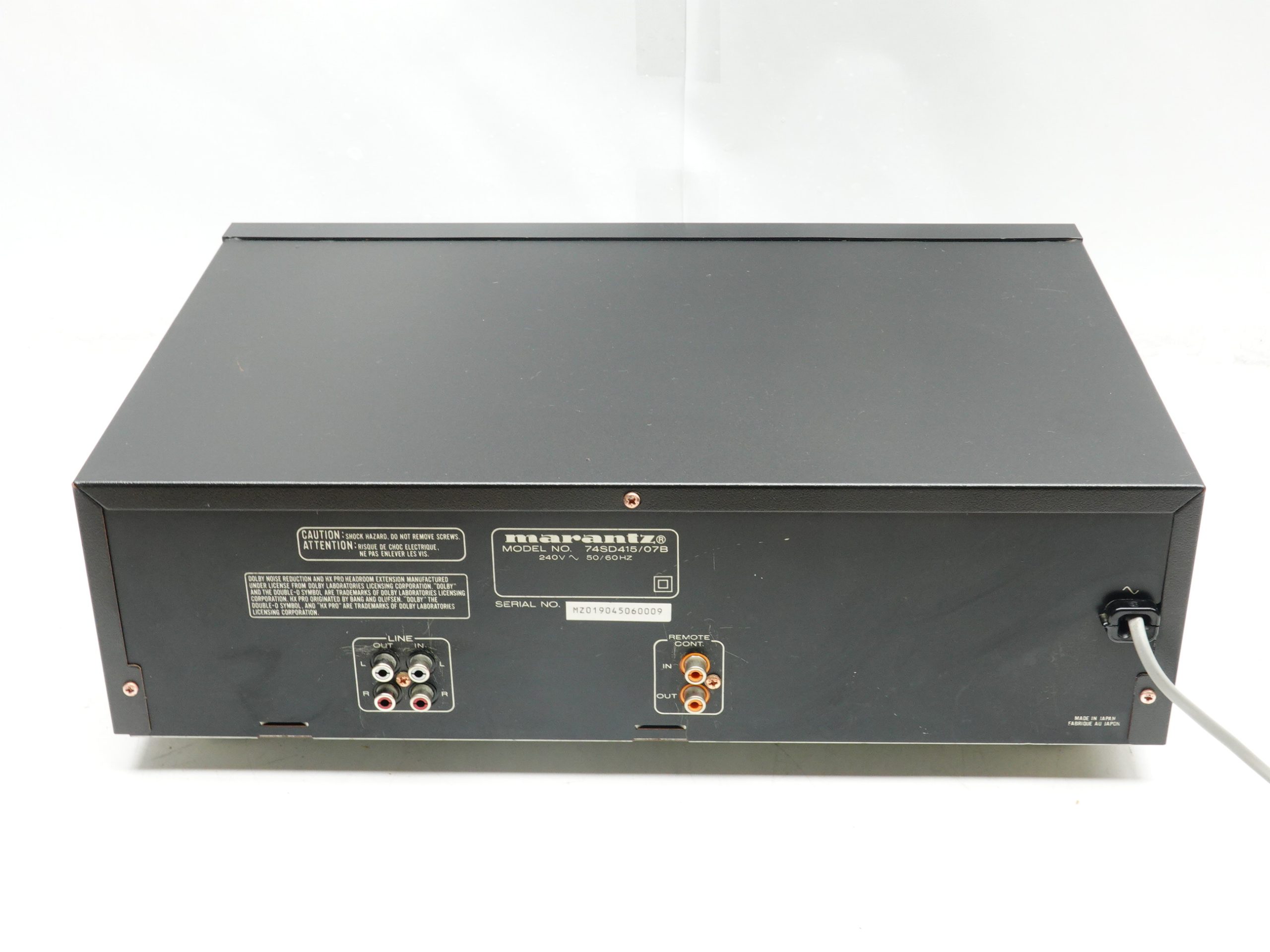

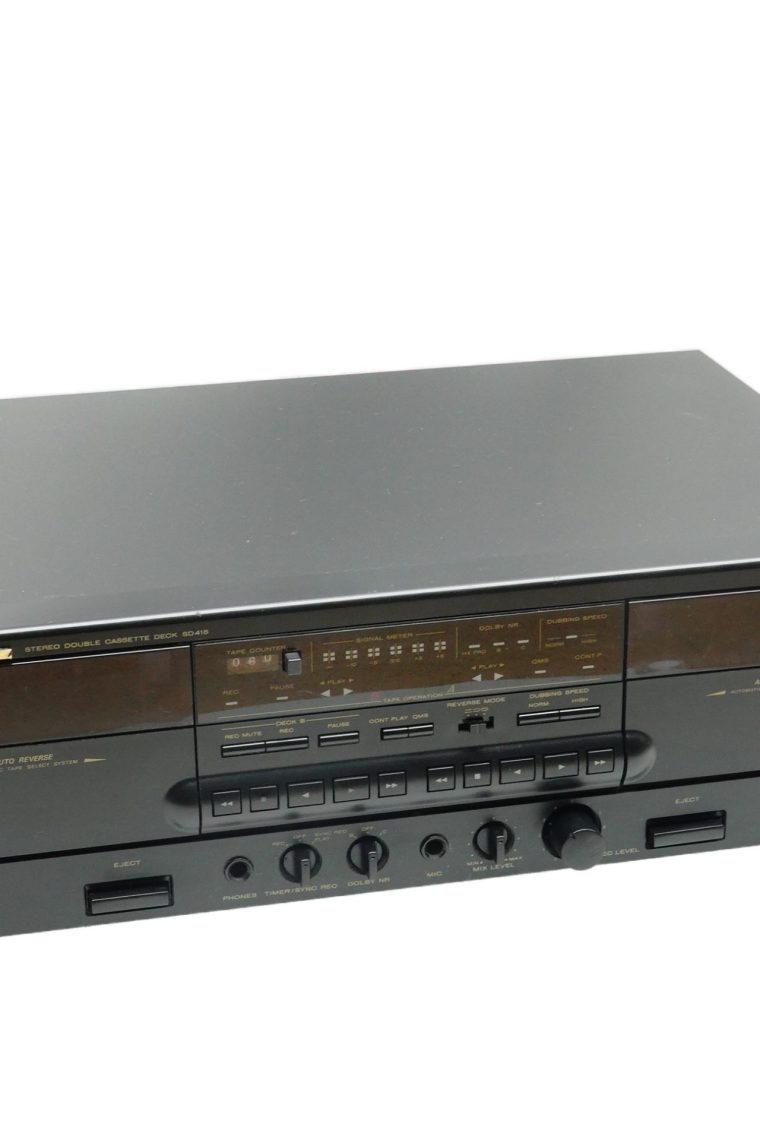

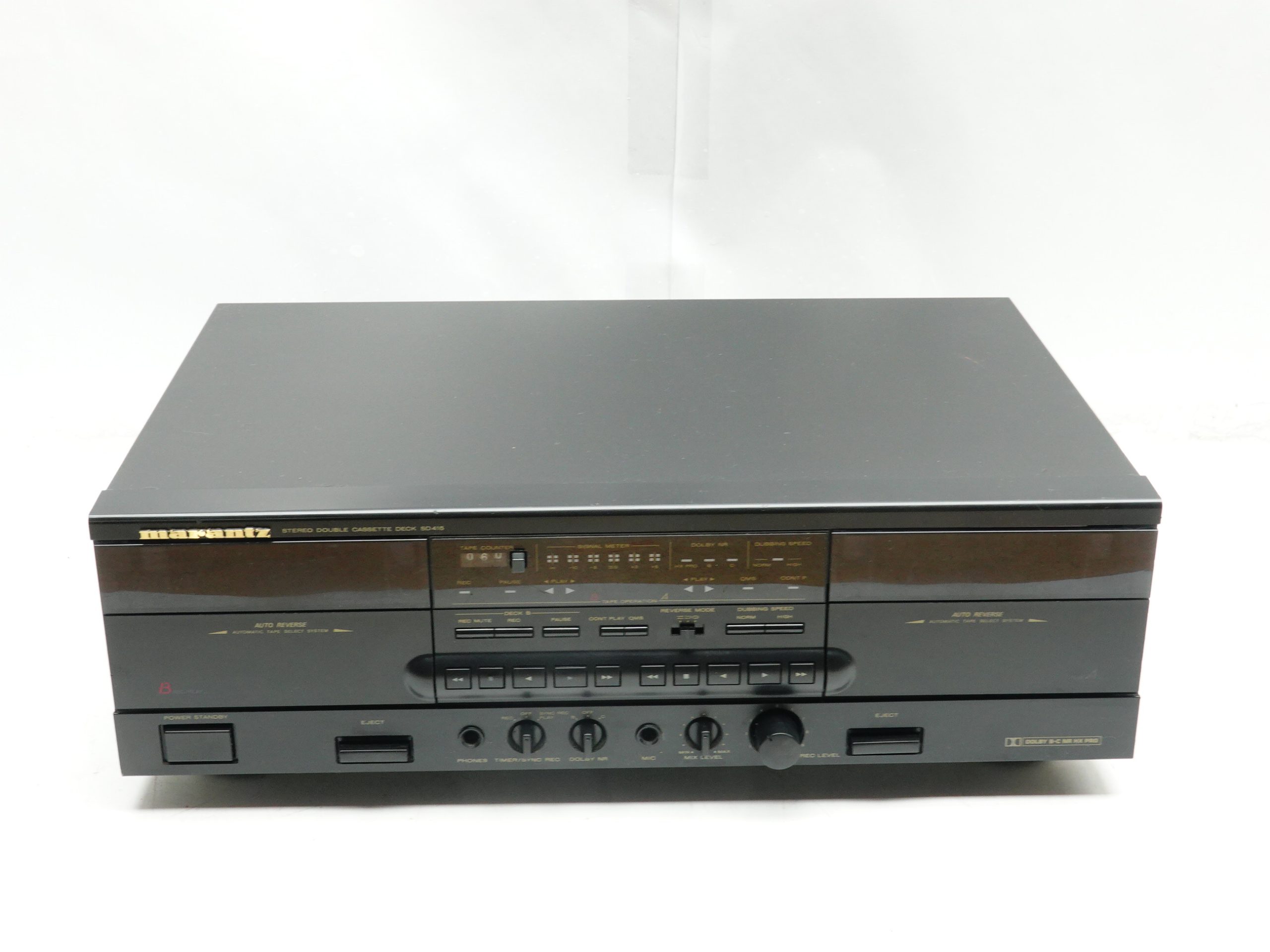

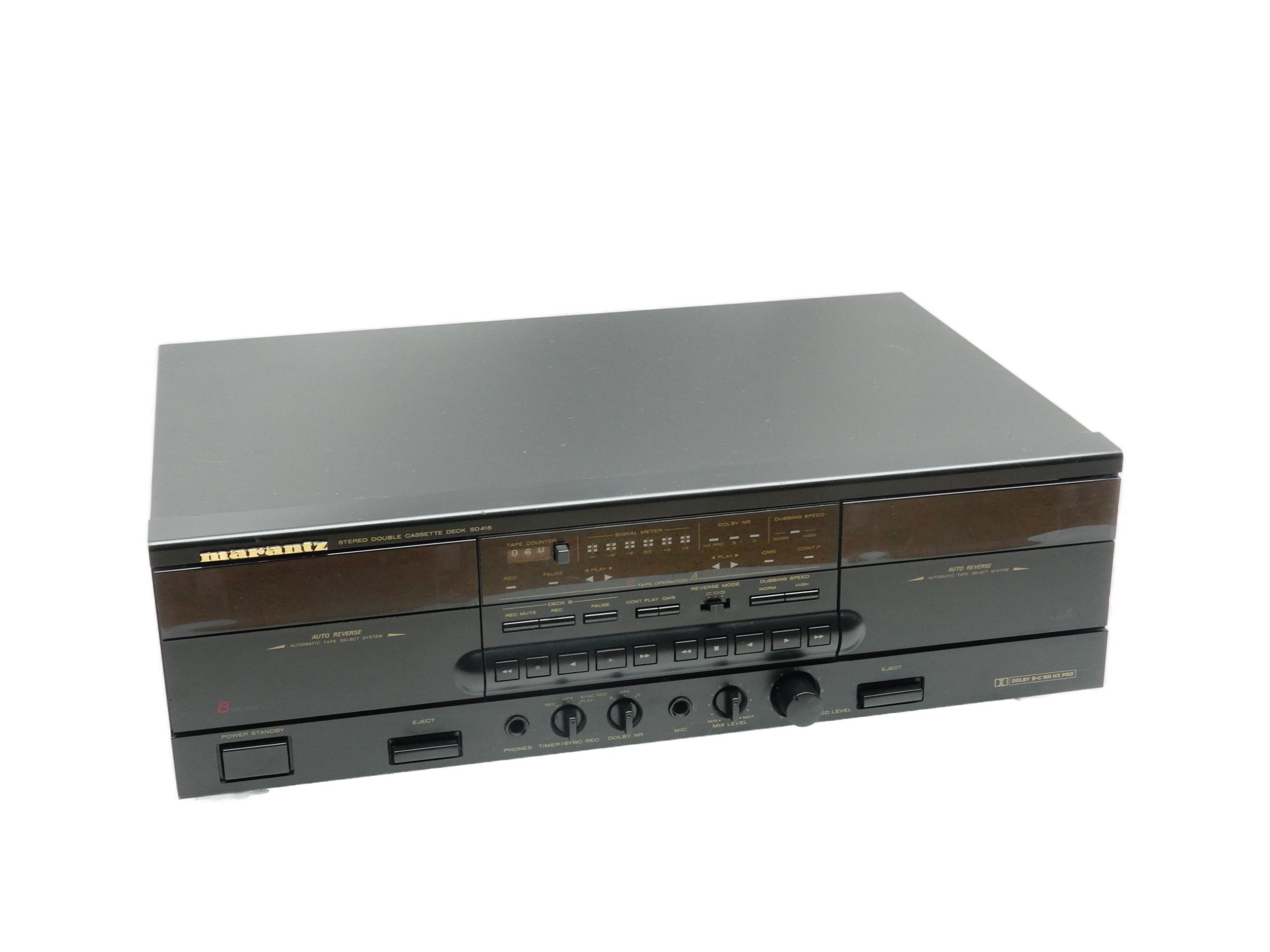

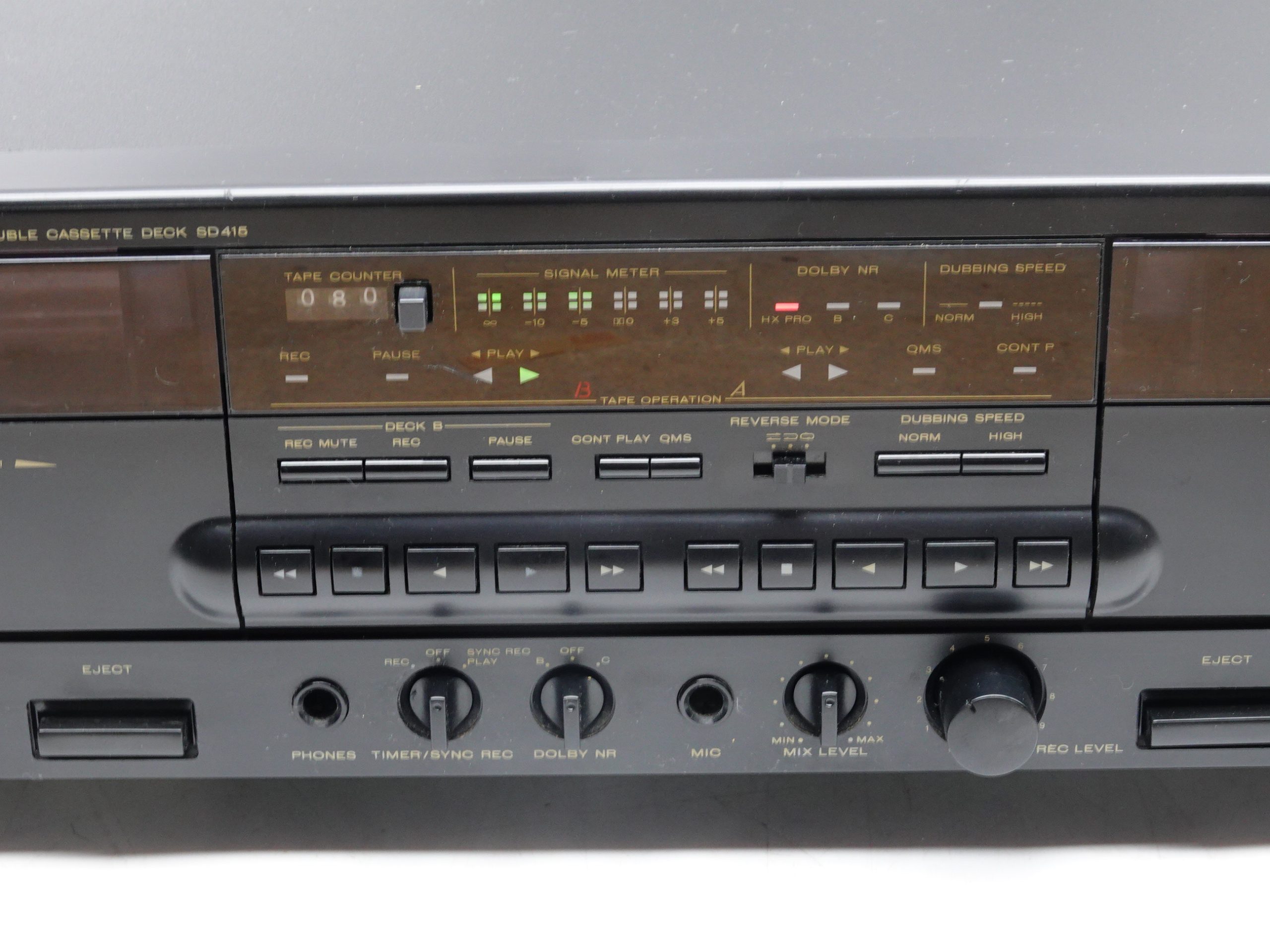

Marantz SD415 Double Cassette Deck

Good looking Marantz Double Cassette unit from the 90ties with all the features you can wish for. It got title search, Auto-Reverse (on both decks), High Speed Dubbing, HX Pro and Dolby B & C.

This unit has received the below service:

• Replacement of both capstan belts
• Cleaning of heads
• Cleaning of capstans
• Treatment of pinch rollers.

Below is a test recording made with the SD415 and played back by it:

Specifications

Type: auto reverse, double compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x playback, 1 x record/playback, 1 x erase

Motor: 2 x DC servo

Tape Type: type I, CrO2, Metal

Noise Reduction: B, C

Frequency Response: 20Hz to 18kHz  (Metal tape)

Signal to Noise Ratio: 70dB  (dolby C)

Wow and Flutter: 0.08%

Input: 70mV (line)

Output: 0.5V (line)

Dimensions: 420 x 118 x 280mm

Weight: 5.4kg

Year: 1990
