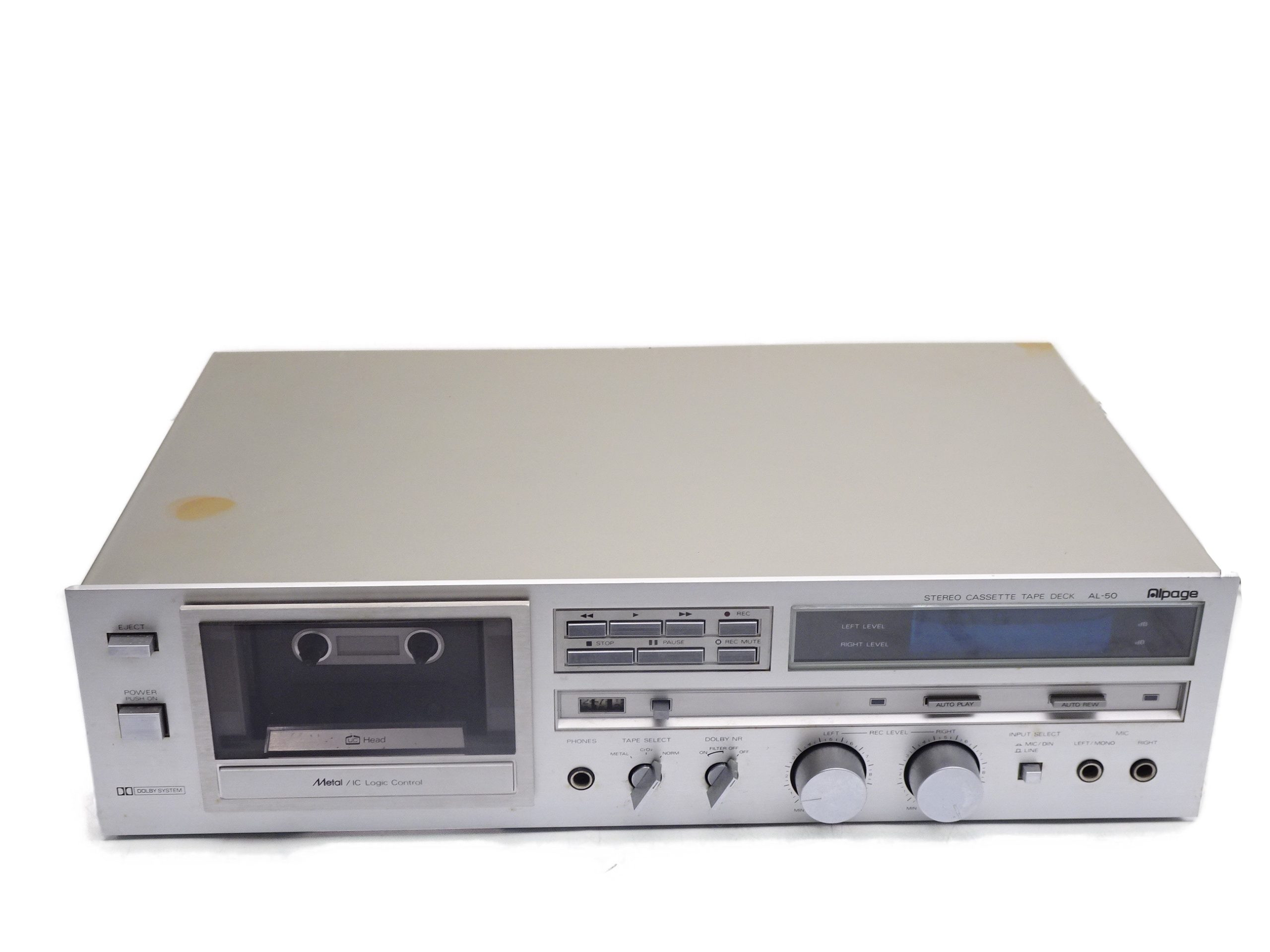

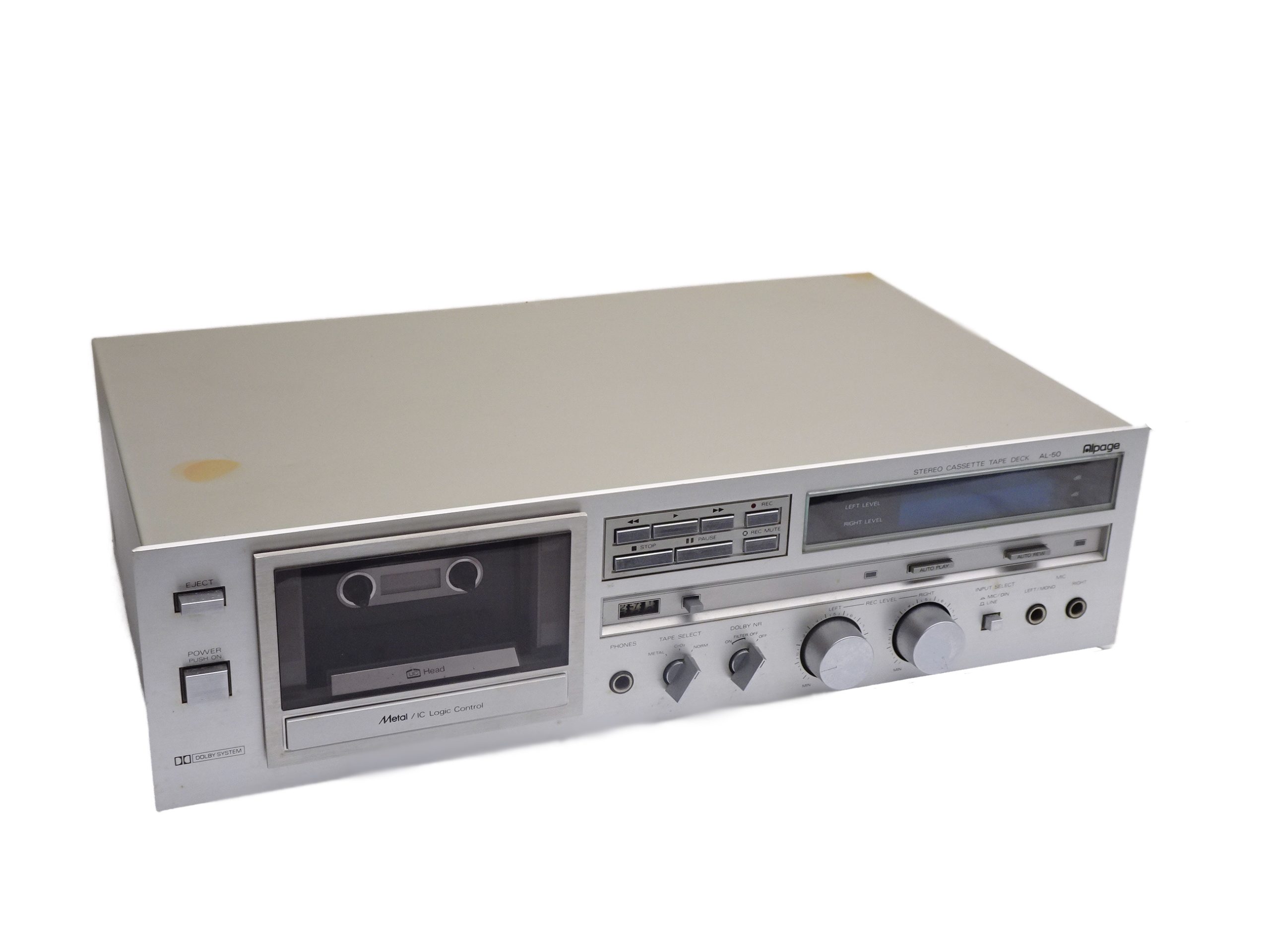

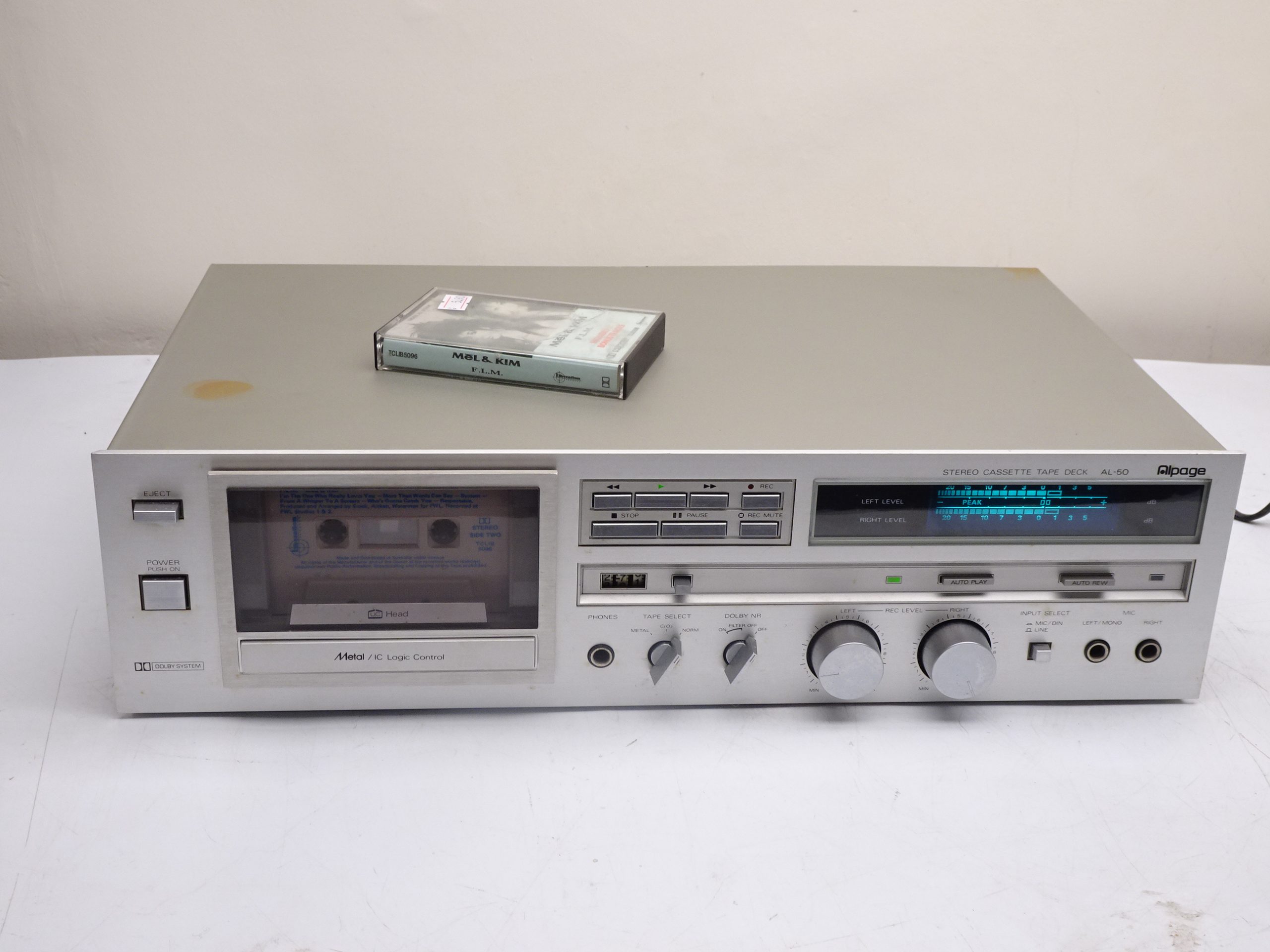

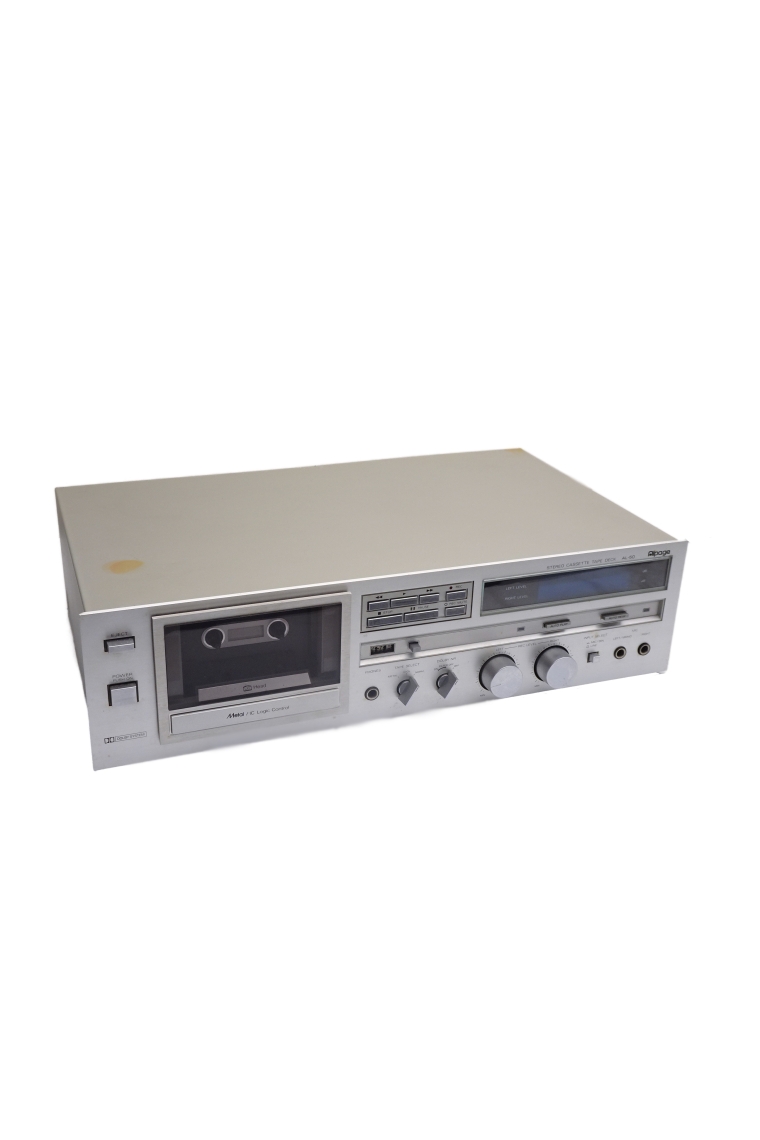

The Alapge AL-50 is a precision engineered, reliable high-fidelity tape recorder adaptable to every variety of component stereo systems.
The AL-50 provides superb performance in all operation modes. It features feather-light IC logic controls, ultra density core head, high performance erase head, convenient auto play/auto rewind, Dolby noise reduction, sensitive fluorescent meters and convenient remote control operation.
We carried out the below service to have the TA-600D operate at its original specs:
- replacement of capstan belt
- replacement of counter belt
- replacement of rwd/ffws belt
- treatment of pinch roller
- cleaning of heads and capstan with IPA
- demagnetisation of heads and capstan
- speed calibration
- full function test
We provide 6 months warranty for cassette decks.
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: DC servo
Tape Type: type I, CrO2, Metal
Noise Reduction: B
Frequency Response: 20Hz to 19kHz (Metal tape)
Signal to Noise Ratio: 65dB (dolby B)
Wow and Flutter: 0.04%
Total Harmonic Distortion: 1%
Input: 75mV (line), 0.2mV (mic)
Output: 0.55V (line)
Semiconductors: 62 x transistors, 2 x FET, 5 x IC, 36 x diodes, 3 x zener diodes, 5 x LED
Dimensions: 435 x 116 x 254mm
Weight: 5.1kg
