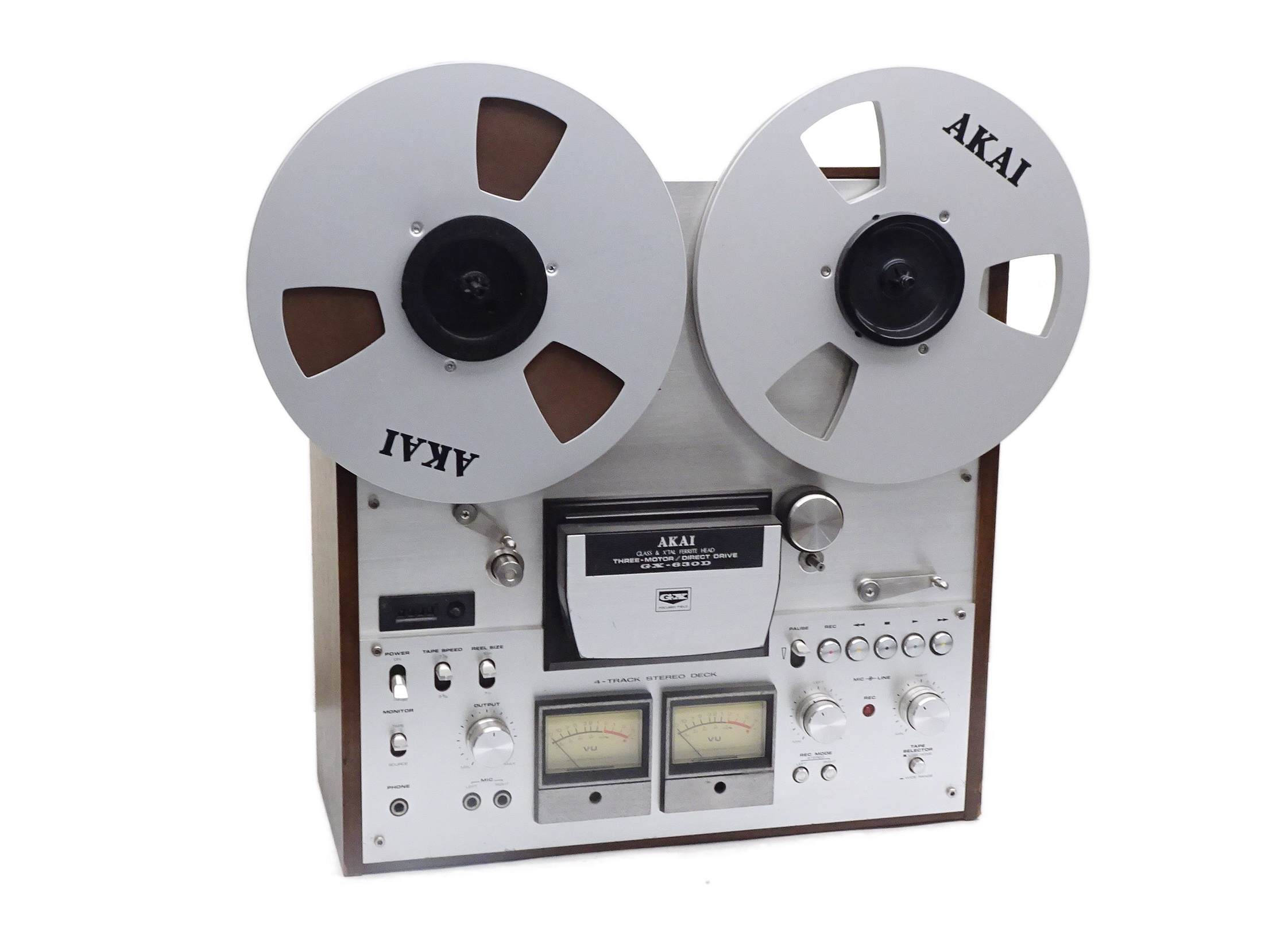

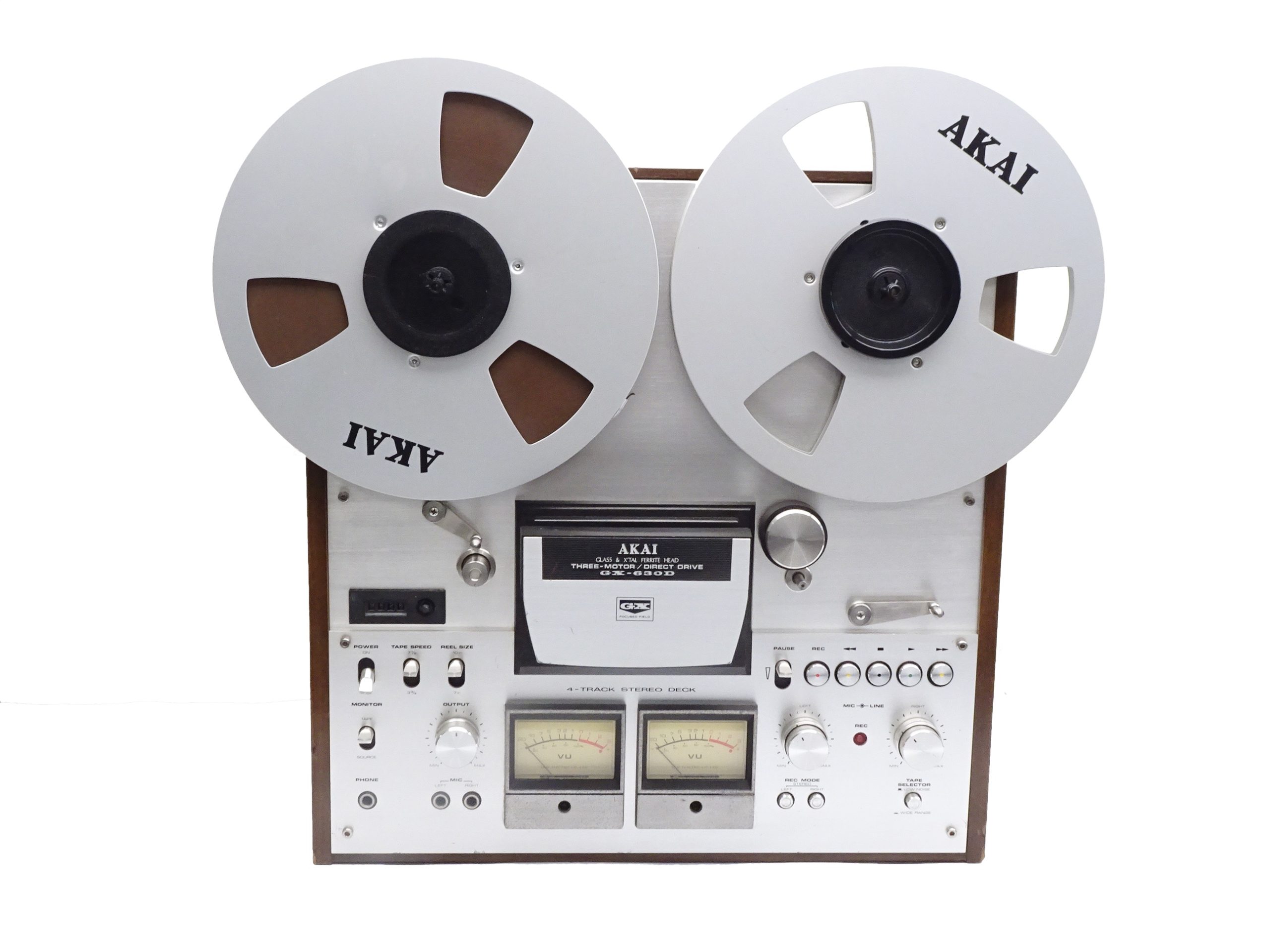

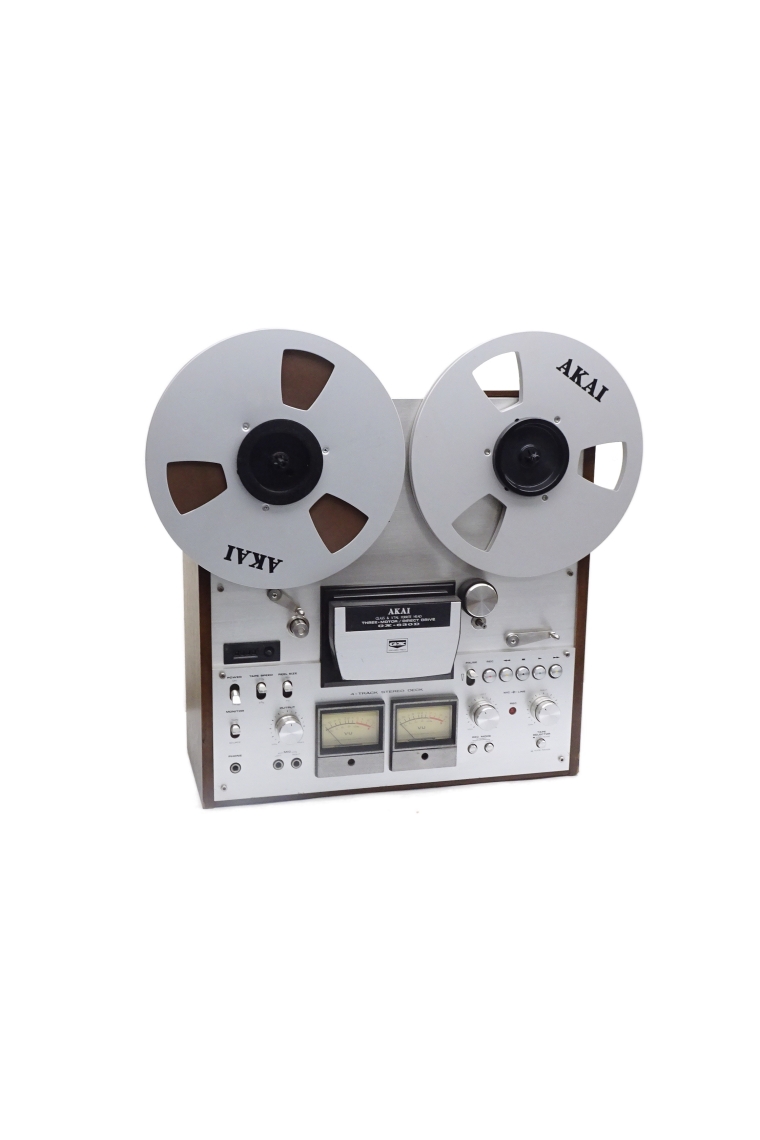

A beautiful 4-track reel to reel that runs at 7 1/2 and 3 3/4 IPS. The GX-630D is equipped with the famous GX (glass) heads that will never wear down and a modern solenoid operated transport operated with push buttons from the front.
Fascia and box are in good condition, with only minor wear marks. We are selling the unit

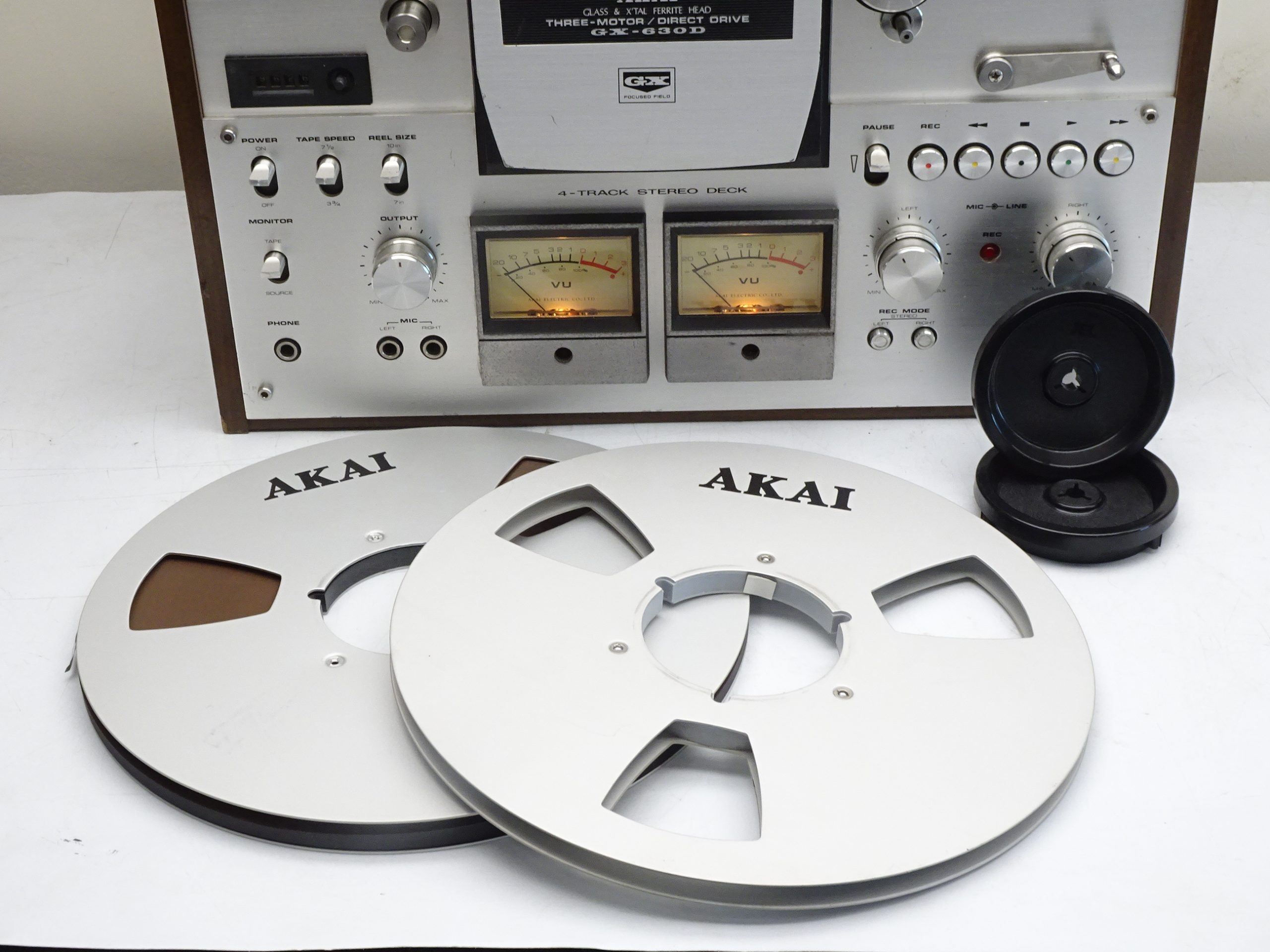

- NAB HUB Adapters
- 10.5″ AKAI Branded empty aluminium reel
- AKAI Branded aluminium reel with our brand new tape
The unit will come with 6 months warranty.
The following service was carried out on this deck:
- Lubrication of moving parts
- Adjustment of breaks
- Calibration of record level for both sides
- Demagnetisations of heads and capstan
- Cleaning of heads and capstan
- Cleaning / treatment of pinch roller
- Cleaning of fascia to bring back original shine
- Replacement of broken bulbs
- Full function test
Description
As is well known, the core of Akai’s GX Head is made of crystal ferrite and is mounted and set in glass. The superior magnetic properties of the head material and special processing allowed the formation of a perfectly lineal shallow head gap, an acute head surface angle contour, and focusing of the magnetic field into a sharp oblong radius.
This focused field system eliminates undue equalization, minimizes high frequency loss, and achieves a wider dynamic range.
Further, sound drop-out is eliminated, head to tape contact and signal to noise ratio improved, and the hardness of the head materials provide dust free and wear free characteristics for longer lasting performance. The GX-630D exhibits a clear frequency response range to 25,000 Hz with Akai LN-150-7 tape.
This model employs a 3 motor drive system with a new CPG (centre pole generated) AC Servo Motor for direct capstan drive. The quality of this outstanding motor plus the elimination of rubber belts and flywheels results in the realization of a 0.06% Wow and Flutter factor.
Two eddy current outer rotor motors complete the drive system for completely stable performance and excellent tone quality. Impedance Roller and Tension Levers also add to tape travel stability.
A Reel Size Selector and standard accessory 10-1/2″ reel hub adapters facilitate the use of 5, 7, or 10-1/2″ reels.
Further, this model features quick tension wherein ideal take up and back tension is applied to the reels at the beginning of tape start for smooth operation regardless of reel size.
Specifications
Track system: 4-track, 2-channel, stereo/monaural system
Heads: 1 x playback, 1 x record, 1 x erase
Motor: 2 x reel drive, 1 x capstan
Reel size: up to 10.5 inch reel
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.06% (7 1⁄2 ips)
Frequency response: 30Hz to 25kHz (7 1⁄2 ips)
Signal to Noise Ratio: 57dB
Total harmonic distortion: 0.5%
Input: 70mV (line), 2.5mV (DIN), 0.25mV (mic)
Output: 0.775V (line), 30V (DIN)
Semiconductors: 50 x transistors, 57 x diodes
Dimensions: 465 x 440 x 240mm
Weight: 19kg
