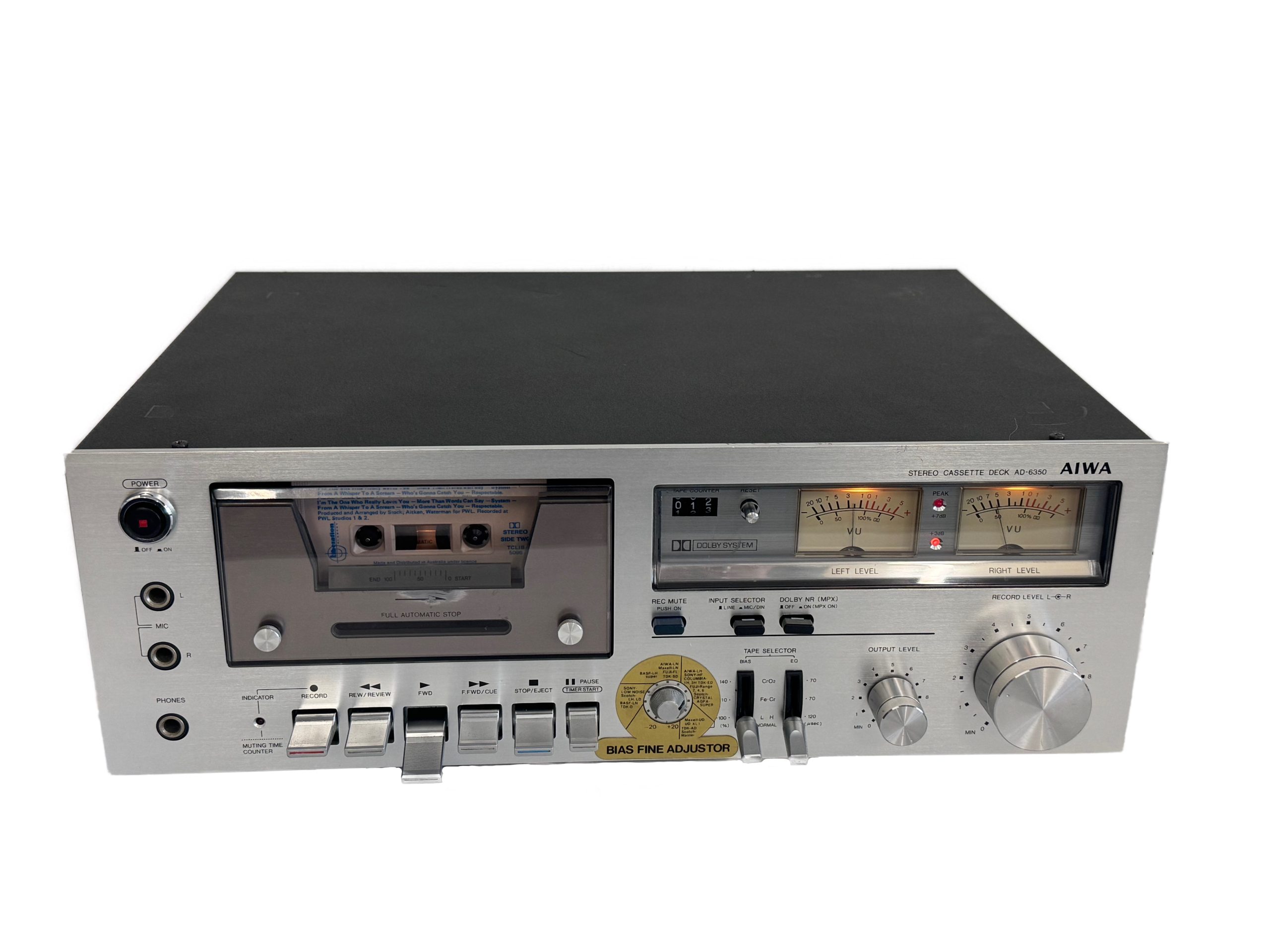

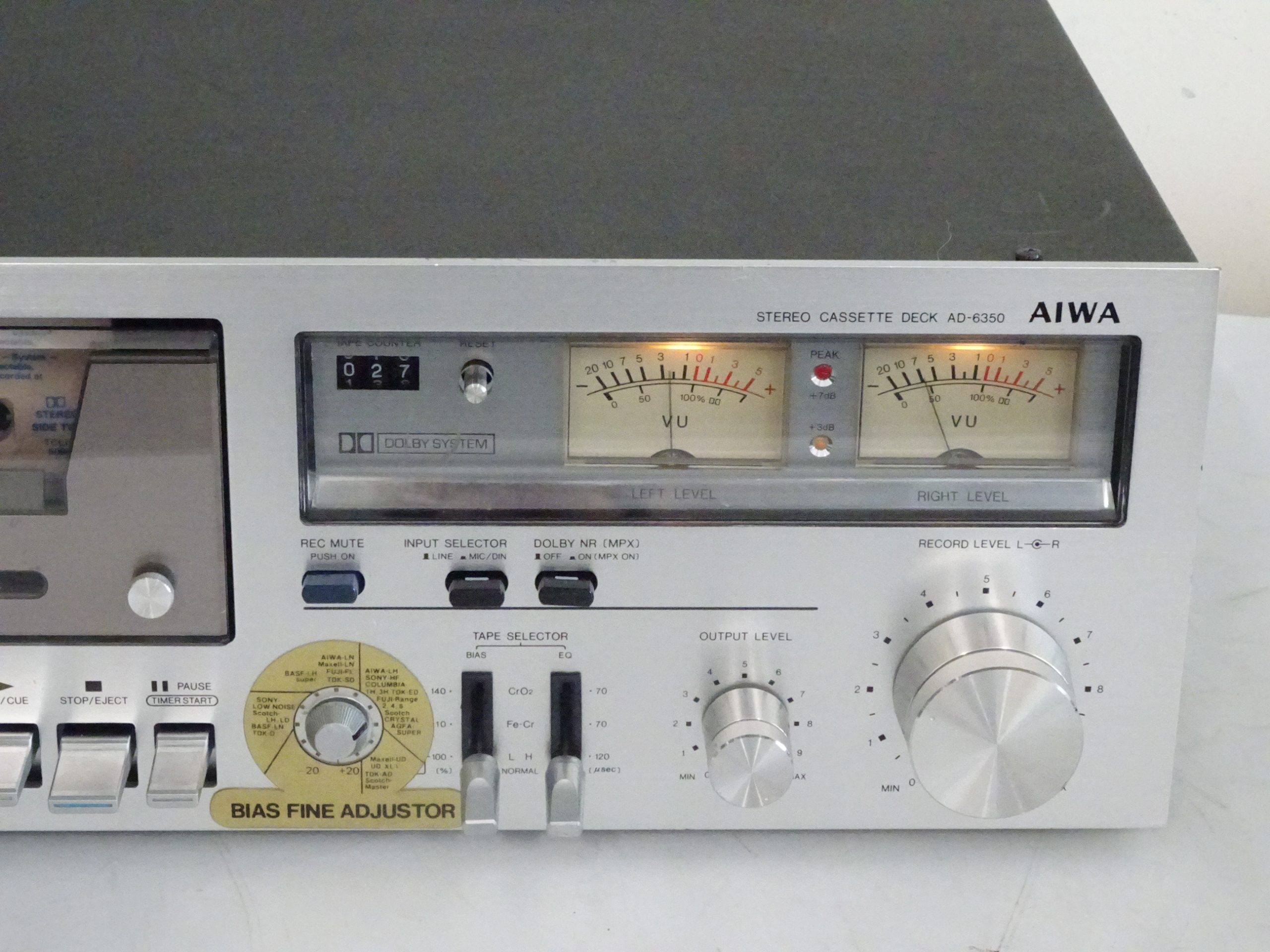

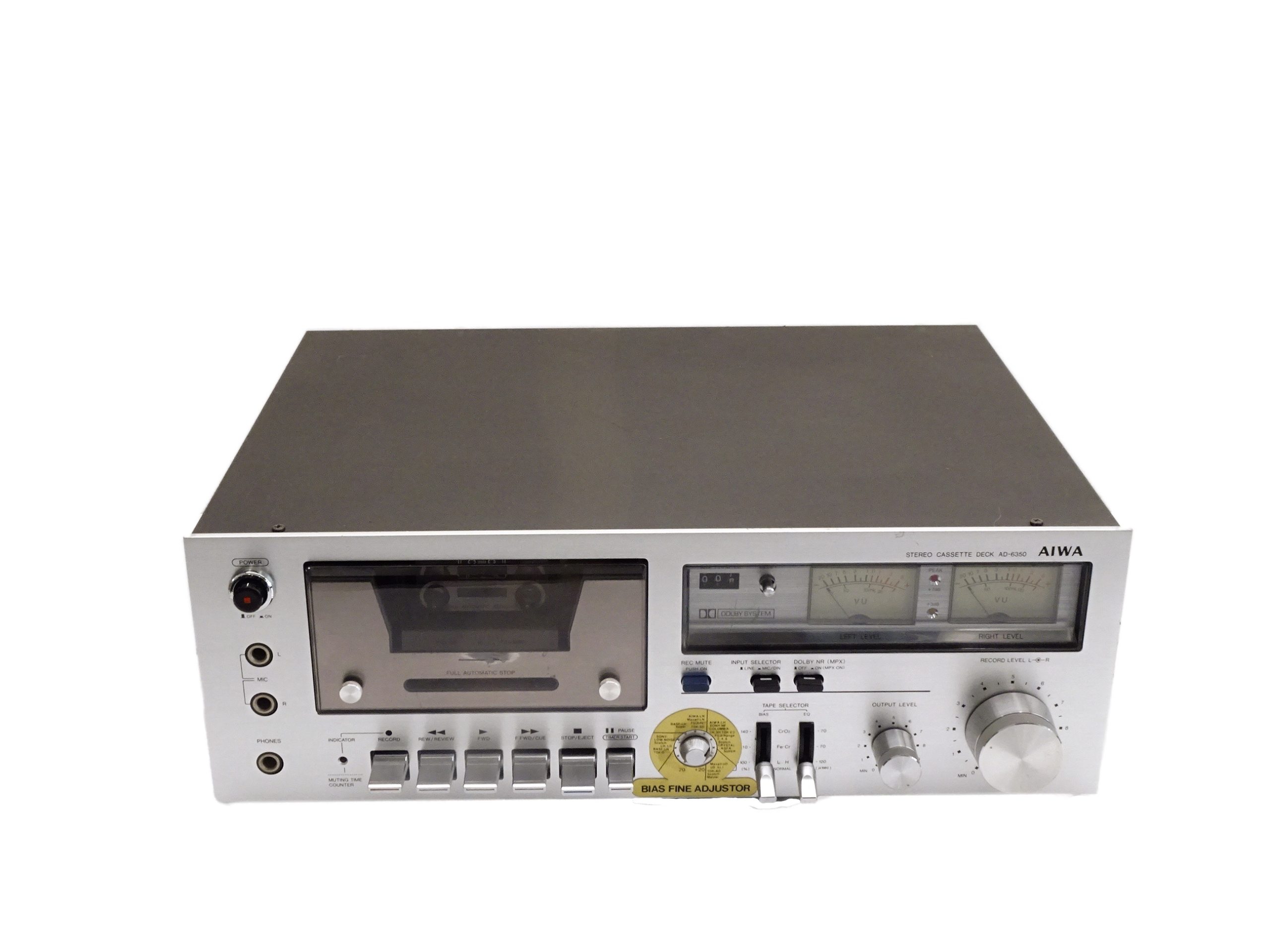

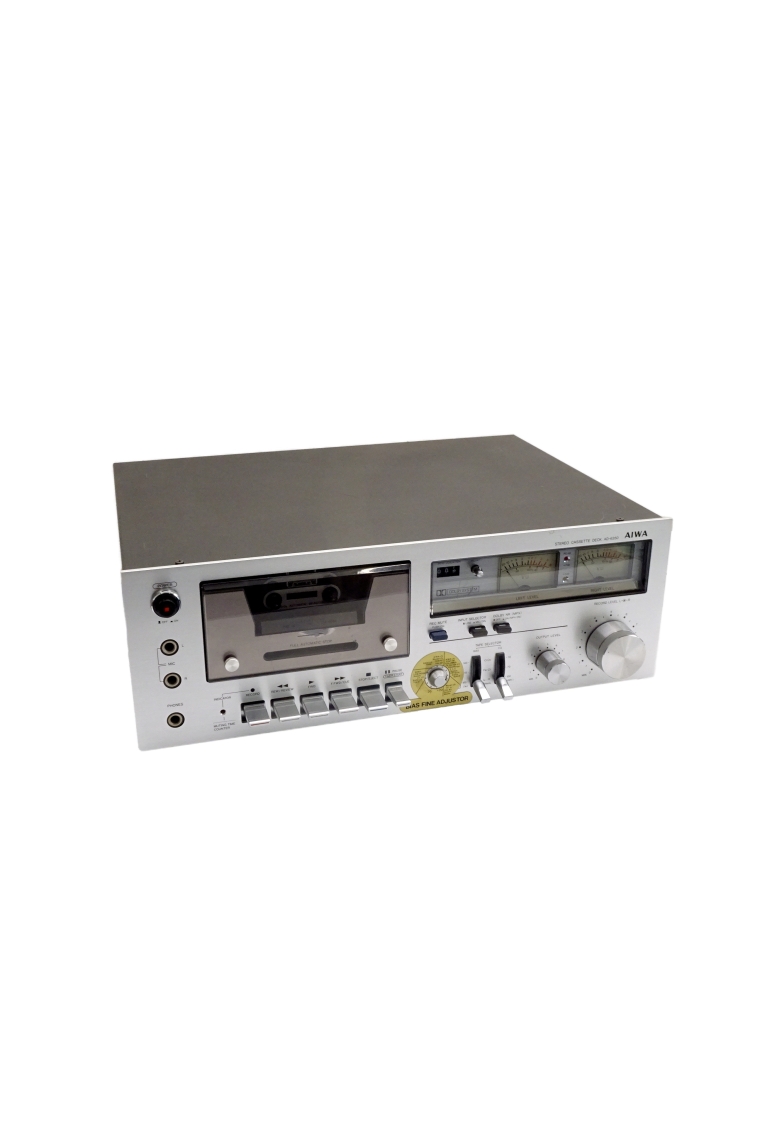

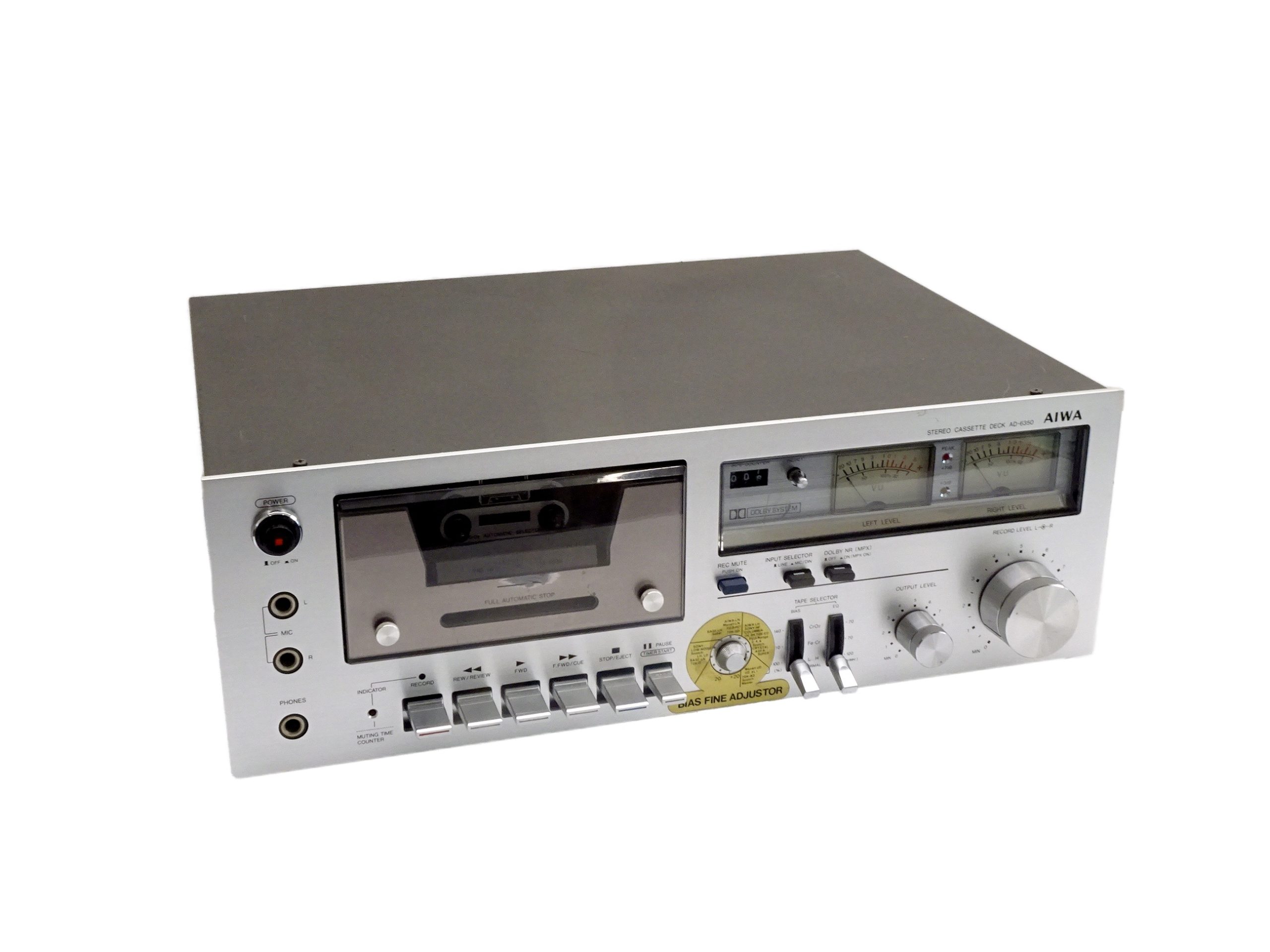

The AIQA AD_6325 is a high end cassette deck from the 70ties. AIWA has a reputation to build excellent cassette decks and the 6325 is one example. Not only performance but also built quality is top notch which shows in the impressive weight of 7.5kg for this deck. On top of the normal function the cassette deck comes with Bias fine tuning and the original sticker for orientation on which bias to chose for which brand, is still on the front panel. The fascia of this unit is in excellent condition. It has been removed and polised, like all knobs and buttons. Esthetically a beautiful device to look at with impressive recording and plaback performance.
The deck has received the below service to bring it back to specs:
- Cleaning of flywheel from rubber residue
- Replacement of capstan belt
- Replacement of FFWD/RWD belt
- Cleaning of capstan
- Cleaning of heads
- Lubrication of moving parts
- Speed calibration
- Playback level calibration
- Record level calibration
- Demagnetisation of heads
- Full functions test
We provide 6 months warranty for cassette decks.
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: DC servo
Tape Type: type I, CrO2, FeCr
Noise Reduction: B
Frequency Response: 20Hz to 17kHz (Cr02 tape)
Signal to Noise Ratio: 45dB (dolby C)
Wow and Flutter: 0.1%
Total Harmonic Distortion: 1.5%
Input: 50mV (line), 0.3mV (mic)
Output: 0.775V (line)
Semiconductors: 4 x IC, 45 x transistors, 35 x diodes, 2 x LED
Dimensions: 420 x 150 x 330mm
Weight: 7.5kg
Year: 1977
